S-SERIES · STORAGE
GL-S2U-24F2S
2 × 2.5″ SATA/SAS + 24 × NVMe
2U storage server with 2 × 2.5″ SATA/SAS + 24 × NVMe bays. Host platform: AMD EPYC 7002. Validated with GenesysBench™ and deployed under GLIDS.
- Drive bays
- 2× 2.5″ SATA/SAS · 24× NVMe
- Height
- 2U
- Sockets
- 1
Specifications
Full public specification.
Previous generation. Still supported by GLabs; ask a solutions architect about availability.
| Form factor | 2U Rackmount |
|---|---|
| Processor | 1 Socket SP3(LGA4094), AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology )/7002 series processors |
| Expansion | 1 low-profile PCIe4.0 x8 1 OCP NIC 3.0 (PCIe4.0 x16) |

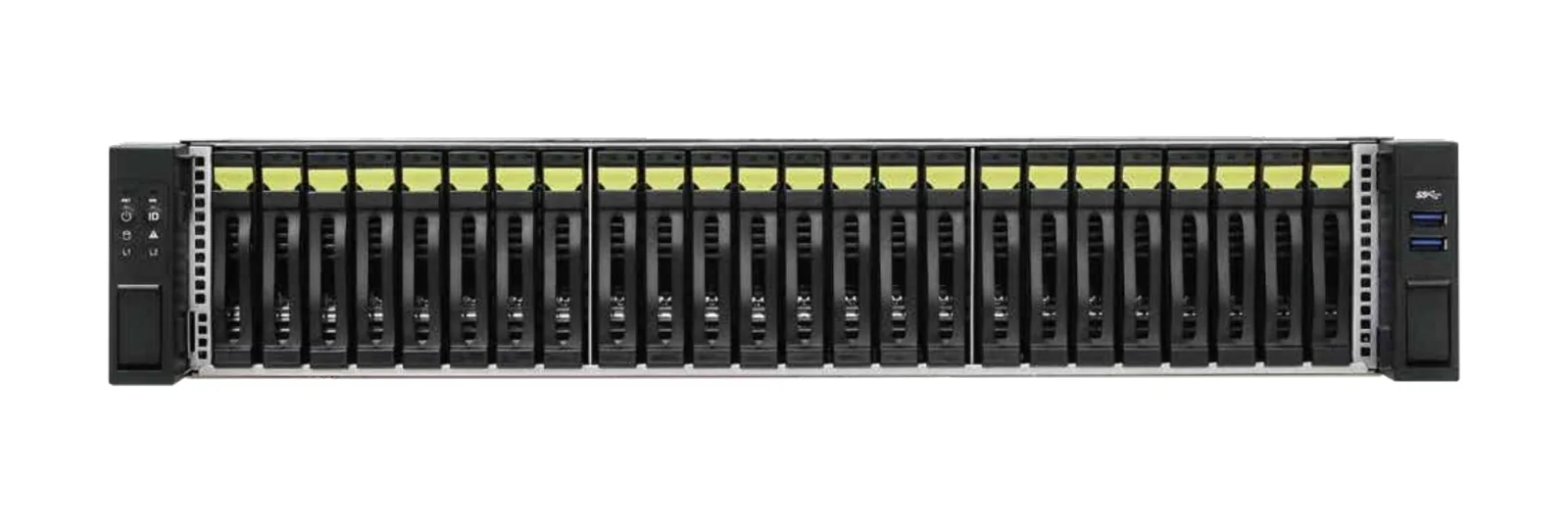

| Storage | 24 Hot-swap 2.5" NVMe (PCIe4.0 x4) drive bays2 Hot-swap 2.5" SATA/SAS drive bays2 M-key (PCIe4.0 x4 or SATA 6Gb/s), 22110/2280 form factor |

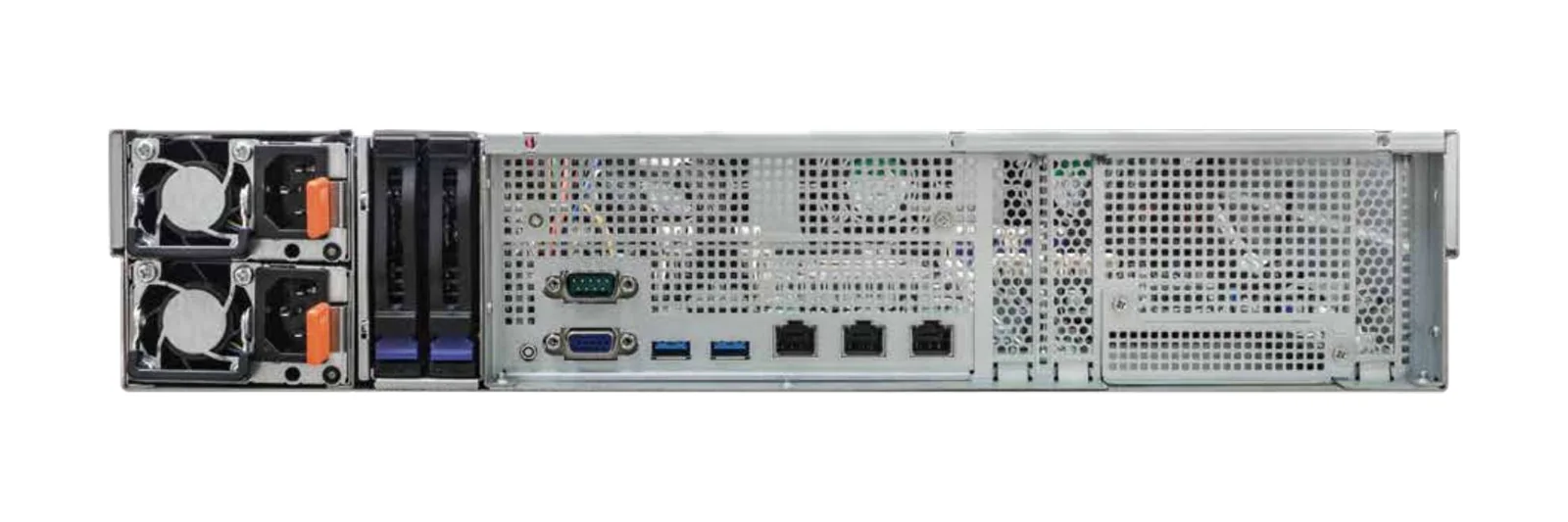

| Networking | 2 RJ45 (1GbE)1 dedicated IPMI |
| Power | 1+1, 80-PLUS Platinum, 1200W CRPS |
| Cooling | 4 PWM 80x38 mm fans |
| Dimensions (D × W × H) | 660 x 438 x 87.5mm (26'' x 17.2'' x 3.4'') |
Exact CPU, memory, drive and network parts are fixed on your quote. GPU and platform names are trademarks of their respective owners.
