S-SERIES · STORAGE
GL-S2U-12H4F
12 × 3.5″ HDD + 4 × NVMe
2U storage server with 12 × 3.5″ HDD + 4 × NVMe bays. Host platform: Intel Xeon 6. Validated with GenesysBench™ and deployed under GLIDS.
- Drive bays
- 12× 3.5″ HDD · 4× NVMe
- Height
- 2U
- Sockets
- 2
Specifications
Full public specification.
| Form factor | 2U Rackmount |
|---|---|
| Processor | 1+1 Socket E2 (LGA 4710) Intel® Xeon® 6700P-series, 6500P-series, and 6700E-series processors |
| CPU TDP | Up to 350W |
| Expansion | 4 FHHL single-slot PCIe5.0 x16 |
| Storage | Front:2 M-key (PCIe5.0 x4), 22110/2280 form factor |
| Networking | 2 RJ45 (1GbE)1 dedicated IPMI |
| Power | 1+1, 80-PLUS Titanium, 2700W CRPS |
| Cooling | 6 PWM Hot-swap 60x56 mm fans |
| Dimensions (D × W × H) | 820 x 438 x 87.5 mm (32.3" x 17.2" x 3.5") |
Exact CPU, memory, drive and network parts are fixed on your quote. GPU and platform names are trademarks of their respective owners.

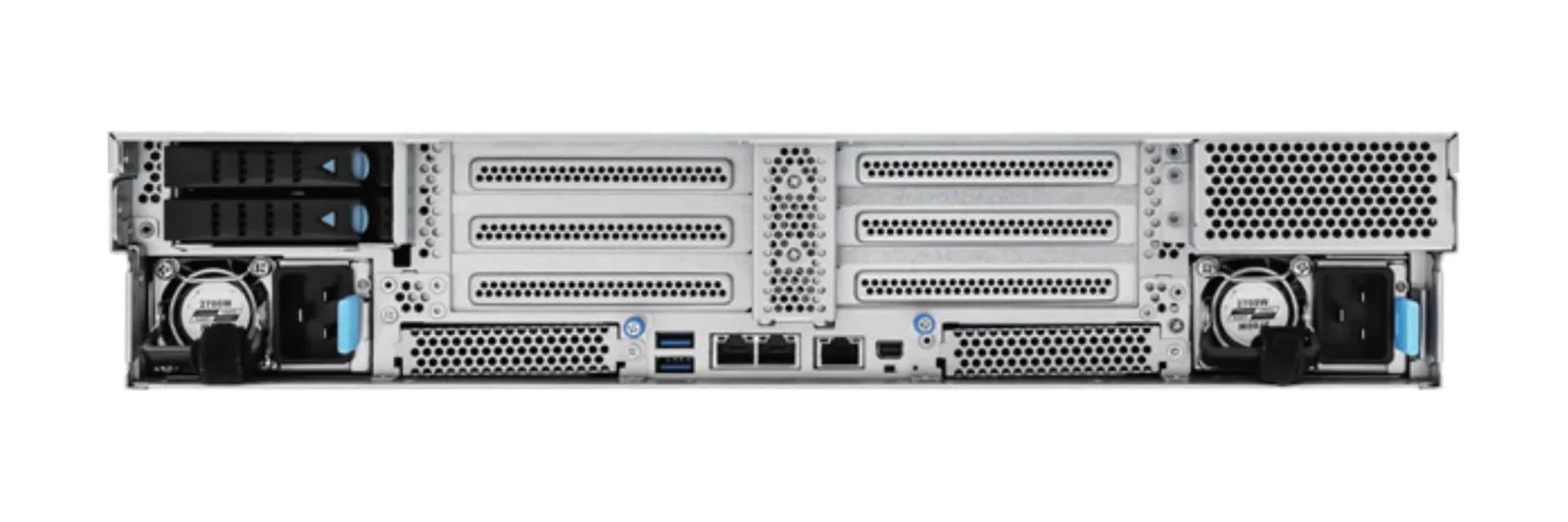

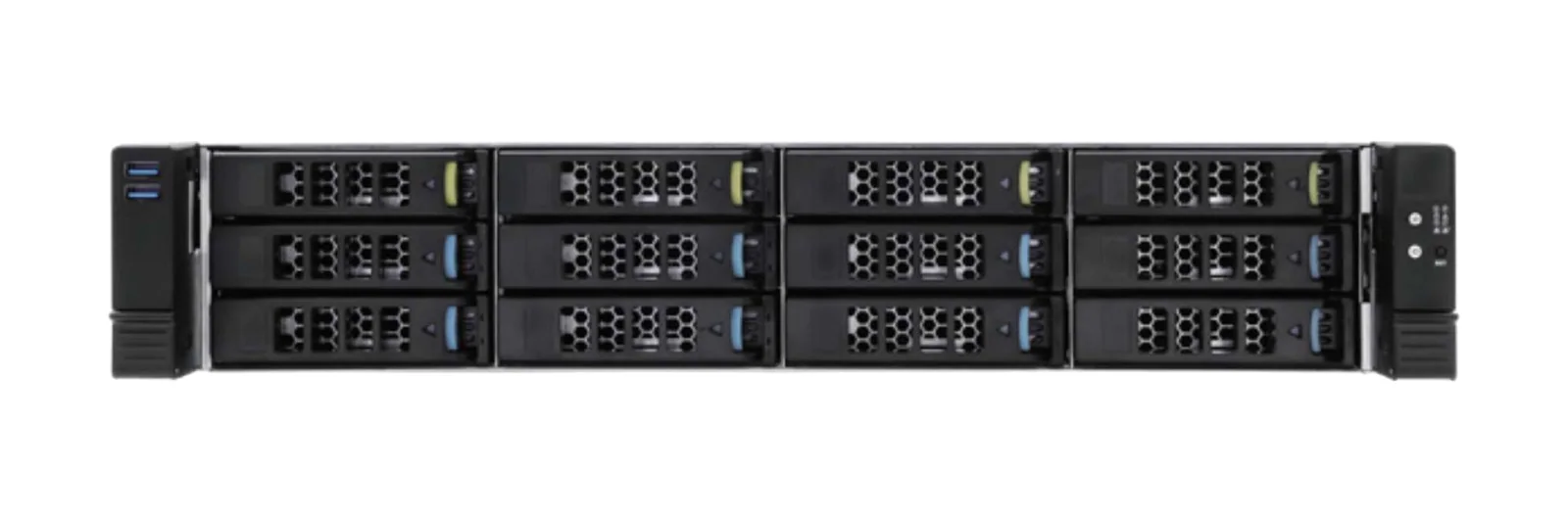

Views
