S-SERIES · STORAGE
GL-S2U-12H8F
12 × 3.5″ HDD + 8 × NVMe
2U storage server with 12 × 3.5″ HDD + 8 × NVMe bays. Host platform: AMD EPYC 9004. Validated with GenesysBench™ and deployed under GLIDS.
- Drive bays
- 12× 3.5″ HDD · 8× NVMe
- Height
- 2U
- Sockets
- 2
Specifications
Full public specification.
| Form factor | 2U Rackmount |
|---|---|
| Processor | 1+1 Socket SP5 (LGA 6096); AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors |
| CPU TDP | Up to 360W |
| Expansion | 2 FHHL PCIe5.0 x16 or1 FHHL PCIe5.0 x16, 2 FHHL PCIe5.0 x81 HHHL PCIe5.0 x16 or2 HHHL PCIe5.0 x8 1 OCP NIC 3.0 (PCIe5.0 x16) |
| Storage | 8 hot-swap 3.5"/2.5" NVMe (PCIe4.0 x4)/SATA drive bays4 hot-swap 3.5"/2.5" SATA drive baysNote12 fixed 2.5" NVMe (PCIe5.0 x4) drive bays1 M-key (PCIe3.0 x4), 2280/2260/2242/2230 form factor ; 1 M-key (PCIe3.0 x4), 2280/2242 form factor |
| Networking | 2 RJ45 (1GbE)1 dedicated IPMI |
| Power | 1+1, 80-PLUS Platinum, 2000W CRPS |
| Cooling | 6 PWM hot-swap 60x38 mm fans |
| Dimensions (D × W × H) | 770.0 X 438.0 X 86.4 mm (30.3" x 17.2" x 3.4") |
| Management | Dedicated BMC (IPMI) TPM (13-pin, SPI) accessory |
Exact CPU, memory, drive and network parts are fixed on your quote. GPU and platform names are trademarks of their respective owners.

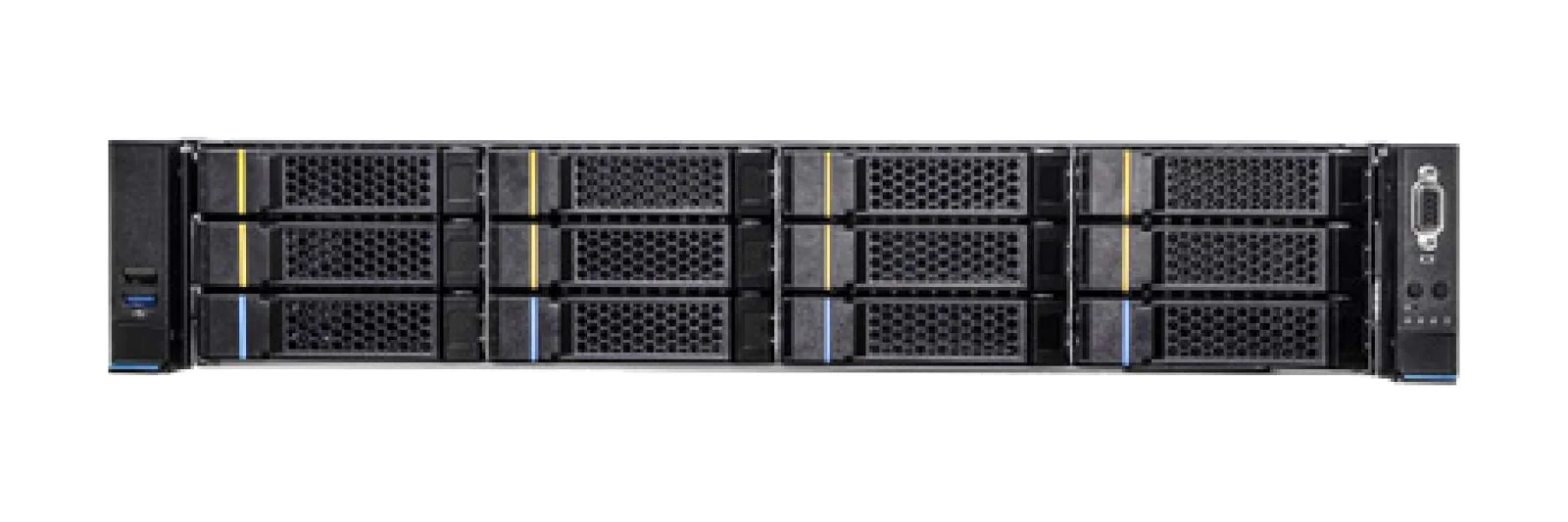

Views
