S-SERIES · STORAGE

GL-S2U-24F

24 × NVMe

2U storage server with 24 × NVMe bays. One chassis, 3 host platforms: AMD EPYC 9004, 5th / 4th Gen Intel Xeon and AMD EPYC 7002. Validated with GenesysBench™ and deployed under GLIDS.

Drive bays: 24× NVMe
Height: 2U
Sockets: 1 or 2

Configure this system Talk to a Solutions Architect

Specifications

Pick the host platform. The chassis, power and cooling follow it.

GL-S2U-24F: AMD EPYC 9004 · Variant A specifications
Form factor	2U Rackmount
Processor	1 Socket SP5 (LGA 6096); AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
CPU TDP	Up to 300W
Memory	24 DDR5 288-pin (2DPC); RDIMM up to 128GB each, max. 5200MT/s (1DPC) / 4400MT/s (2DPC)RDIMM-3DS up to 256GB each, max. 5200MT/s (1DPC) / 4400MT/s (2DPC)
Expansion	1 HHHL PCIe5.0 x16
Storage	24 hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays
Networking	2 RJ45 (10GbE)2 RJ45 (1GbE)1 dedicated IPMI
Power	1+1, 80-PLUS Titanium, 1600W CRPS
Cooling	4 PWM 80x38 mm fans
Dimensions (D × W × H)	660 x 438 x 87.5 mm (26" x 17.2" x 3.4")
Management	Dedicated BMC (IPMI) TPM (13-pin, SPI)

GL-S2U-24F: AMD EPYC 9004 · Variant B specifications
Form factor	2U Rackmount
Processor	1+1 Socket SP5 (LGA 6096); AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
CPU TDP	Up to 360W
Expansion	1 FHHL PCIe5.0 x16 or2 FHHL PCIe5.0 x8 , 1 FHHL PCIe5.0 x16 or2 FHHL PCIe5.0 x81 HHHL PCIe5.0 x8 , 1 OCP NIC 3.0 (PCIe5.0 x16)
Storage	24 hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays2 fixed 2.5" NVMe (PCIe5.0 x4) drive bays1 M-key (PCIe3.0 x4), 2280/2260/2242/2230 form factor ; 1 M-key (PCIe3.0 x4), 2280/2242 form factor
Networking	2 RJ45 (1GbE)1 dedicated IPMI
Power	1+1, 80-PLUS Titanium, 2600W CRPS
Cooling	6 PWM hot-swap 60x38 mm fans
Dimensions (D × W × H)	770.0 x 438.0 x 86.4 mm (30.3" x 17.2" x 3.4")
Management	Dedicated BMC (IPMI) TPM (13-pin, SPI) accessory

Previous generation. Still supported by GLabs; ask a solutions architect about availability.

GL-S2U-24F: 5th / 4th Gen Intel Xeon specifications
Form factor	2U Rackmount
Processor	1+1 Socket E (LGA 4677); Supports 5th & 4th Gen Intel® Xeon® Scalable processors
Expansion	2 FHHL PCIe 5.0 x16 2 OCP NIC 3.0 (PCIe 5.0 x16)
Storage	24 Hot-swap 2.5" NVMe drive bays2 Hot-swap 2.5" SATA drive bays2 M-key (PCIe4.0 x4), support 22110/2280 form factor
Networking	1 RJ45 (COM)1 dedicated IPMI
Power	1+1, 80-PLUS Platinum, 2700W CRPS PSU
Cooling	6 PWM Oxed 60x56 mm fans
Dimensions (D × W × H)	800 x 438 x 88 mm (31.50" x 17.24" x 3.46")

Previous generation. Still supported by GLabs; ask a solutions architect about availability.

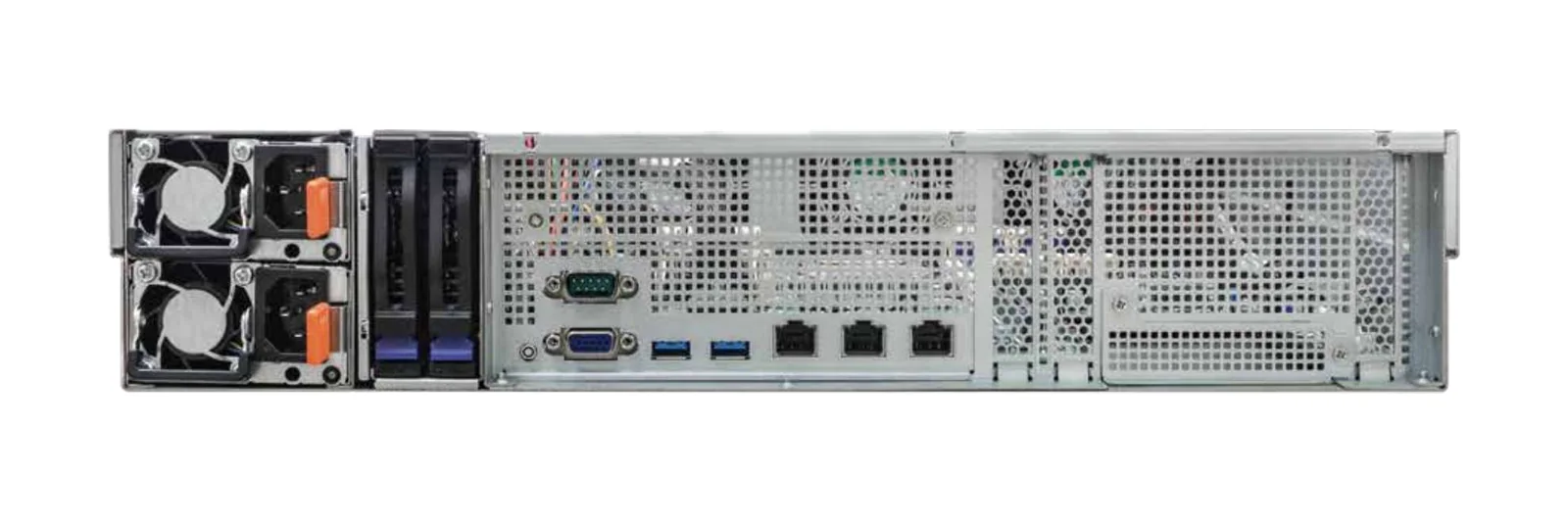

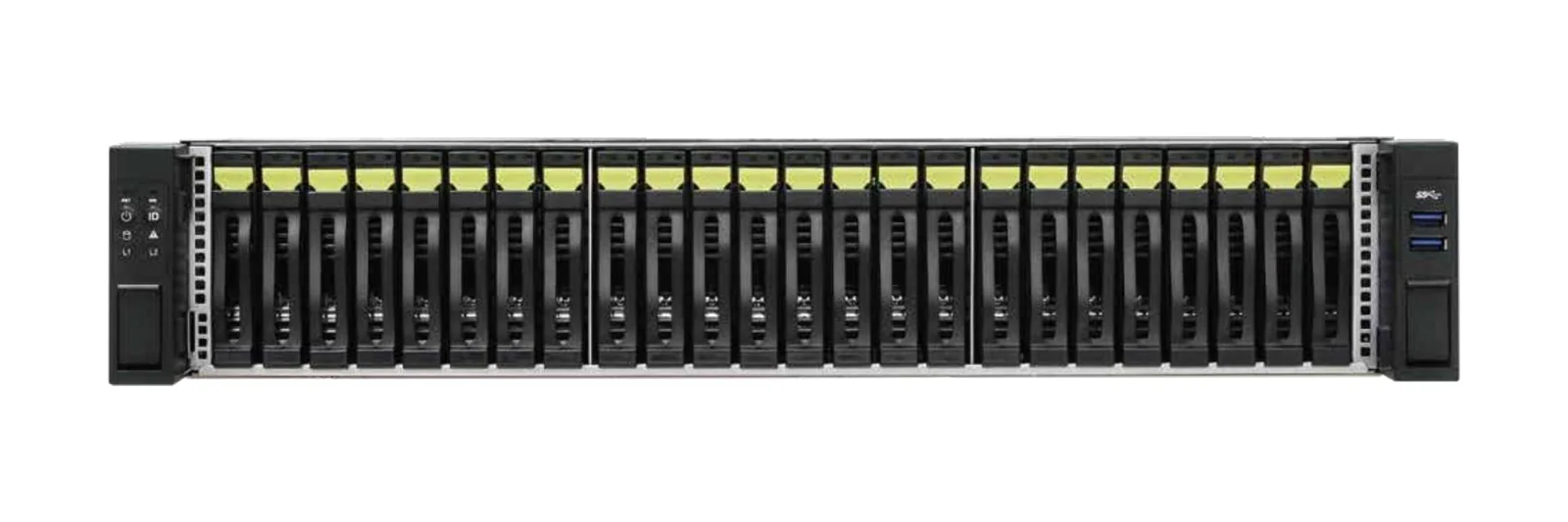

GL-S2U-24F: AMD EPYC 7002 · Variant A specifications
Form factor	2U Rackmount
Processor	1 Socket SP3(LGA4094), AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology )/7002 series processors
Expansion	1 low-profile PCIe4.0 x8 1 OCP NIC 3.0 (PCIe4.0 x16)
Storage	24 Hot-swap 2.5" NVMe (PCIe4.0 x4) drive bays2 Hot-swap 2.5" SATA/SAS drive bays2 M-key (PCIe4.0 x4 or SATA 6Gb/s), 22110/2280 form factor
Networking	2 RJ45 (1GbE)1 dedicated IPMI
Power	1+1, 80-PLUS Platinum, 1200W CRPS
Cooling	4 PWM 80x38 mm fans
Dimensions (D × W × H)	660 x 438 x 87.5mm (26'' x 17.2'' x 3.4'')

Previous generation. Still supported by GLabs; ask a solutions architect about availability.

GL-S2U-24F: AMD EPYC 7002 · Variant B specifications
Form factor	2U Rackmount
Processor	1+1 Socket SP3(LGA4094), AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology )/7002 series processors
Expansion	1 FH PCIe4.0 x16 or 2 FH PCIe4.0 x8 1 FH PCIe4.0 x16 or 2 FH PCIe4.0 x8 1 OCP NIC 3.0 (PCIe4.0 x16, NCSI)
Storage	24 Hot-swap 2.5" NVMe (PCIe3.0 x4) drive bays2 Vxed 2.5" SATA drive bays1 M-key (PCIe4.0 x4 or SATA 6Gb/s), 2280/2260/2242/2230 form factor1 M-key (PCIe4.0 x2 or SATA 6Gb/s), 2280/2242 form factor
Networking	2 RJ45 (1GbE)1 dedicated IPMI
Power	1+1, 80-PLUS Platinum, 2000W CRPS
Cooling	6 PWM 60x38 mm fans
Dimensions (D × W × H)	770 x 438 x 86.4 mm (30.3" x 17.2" x 3.4")
