S-SERIES · STORAGE

GL-S1U-8S4F

8 × 2.5″ SATA/SAS + 4 × NVMe

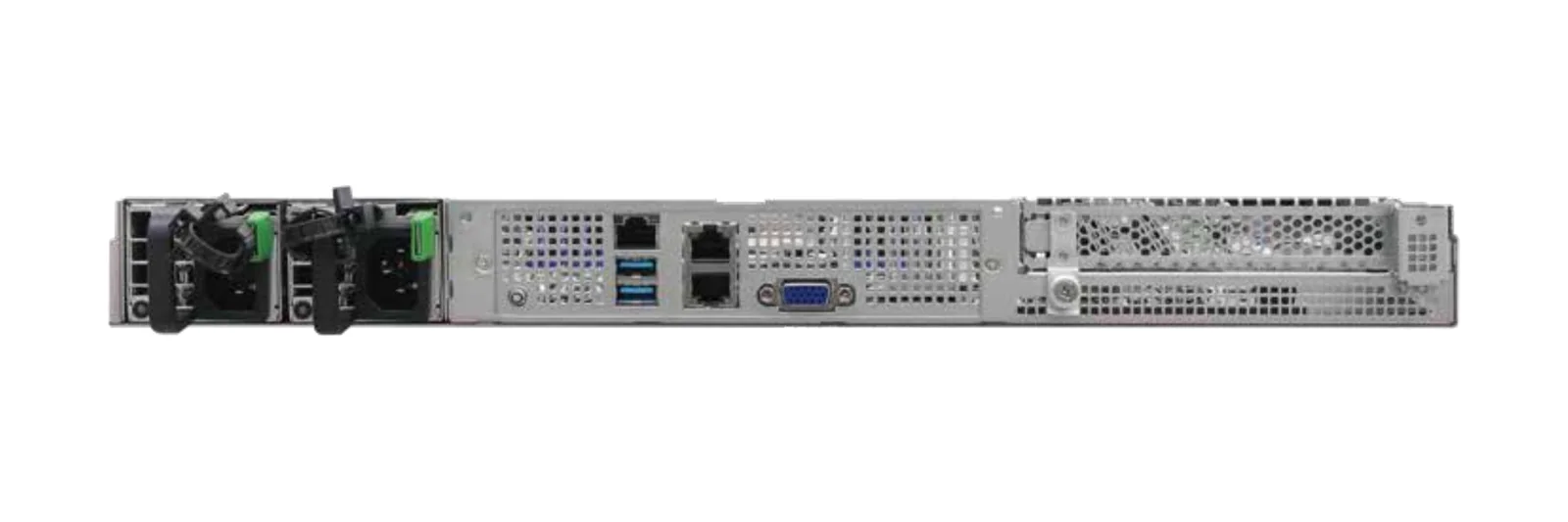

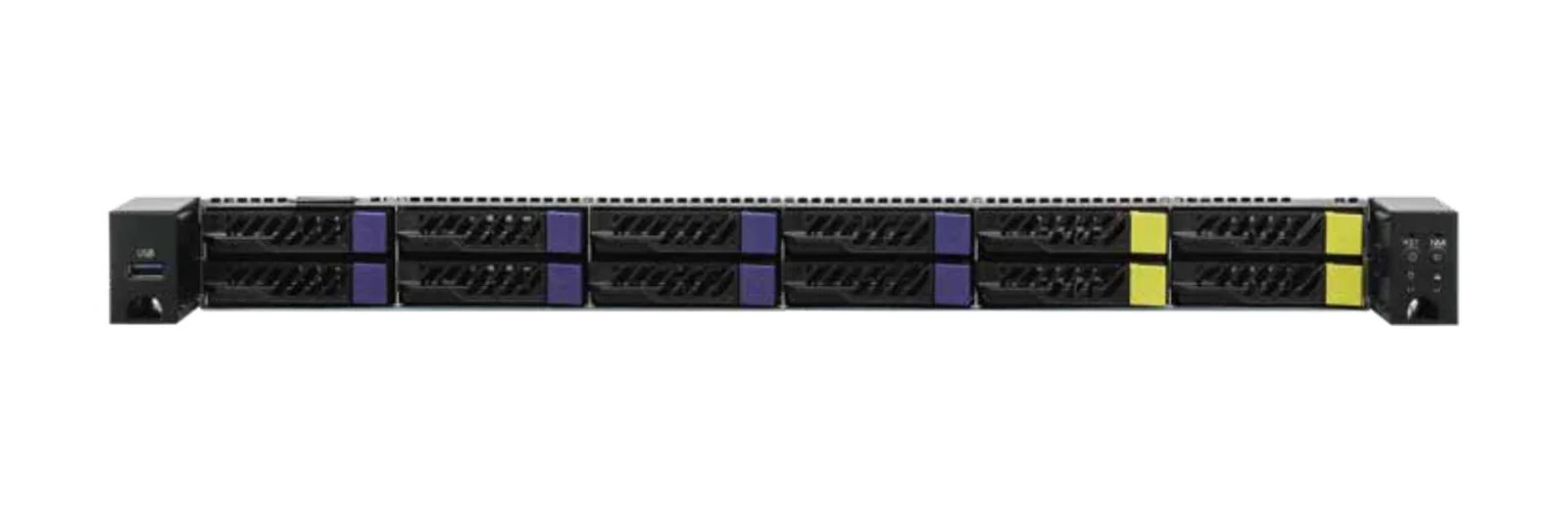

1U storage server with 8 × 2.5″ SATA/SAS + 4 × NVMe bays. One chassis, 2 host platforms: AMD EPYC 9004 and 5th / 4th Gen Intel Xeon. Validated with GenesysBench™ and deployed under GLIDS.

Drive bays: 8× 2.5″ SATA/SAS · 4× NVMe
Height: 1U
Sockets: 1

Configure this system Talk to a Solutions Architect

Specifications

Pick the host platform. The chassis, power and cooling follow it.

GL-S1U-8S4F: AMD EPYC 9004 specifications
Form factor	1U Rackmount
Processor	1 Socket SP5 (LGA 6096); AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
CPU TDP	Up to 300W
Expansion	1 FHHL PCIe5.0 x16 (Up to 75W)
Storage	4 hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays8 hot-swap 2.5" SATA/SAS drive bays2 M-key (PCIe5.0 x4); support 2280/2260/2242/2230 form factor
Networking	2 RJ45 (10GbE)1 dedicated IPMI
Power	1+1, 80-PLUS Platinum, 750W Slim PSU
Cooling	6 PWM easy-swap 40x56 mm fans
Dimensions (D × W × H)	676.5 x 438 x 43.4 mm (26.6" x 17.2" x 1.7")
Management	Dedicated BMC (IPMI) TPM (13-pin, SPI) accessory

Previous generation. Still supported by GLabs; ask a solutions architect about availability.

GL-S1U-8S4F: 5th / 4th Gen Intel Xeon specifications
Form factor	1U Rackmount
Processor	1 Socket E (LGA 4677); Supports 5th & 4th Gen Intel® Xeon® Scalable processors
Expansion	1 FHHL PCIe5.0 x16
Storage	4 Hot-swap 2.5" NVMe (PCIe5.0 x4)/SATA/SASNote1 drive bays8 Hot-swap 2.5" SATA drive bays1 M-key (PCIe3.0 x4); support 2280 form factor
Networking	2 RJ45 (10GbE)1 dedicated IPMI
Power	1+1, 80-PLUS Platinum, 750W Slim RPSU
Cooling	6 PWM Easy-swap 40x56 mm fans
Dimensions (D × W × H)	676.5 x 438 x 43.4 mm (26.6" x 17.2" x 1.7")
