S-SERIES · STORAGE
GL-S1U-4H
4 × 3.5″ HDD
1U storage server with 4 × 3.5″ HDD bays. Host platform: AMD EPYC 9004. Validated with GenesysBench™ and deployed under GLIDS.
- Drive bays
- 4× 3.5″ HDD
- Height
- 1U
- Sockets
- 1
Specifications
Full public specification.
| Form factor | 1U Rackmount |
|---|---|
| Processor | 1 Socket SP5 (LGA 6096); AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors |
| CPU TDP | Up to 300W |
| Expansion | 1 FHHL PCIe5.0 x16 (Up to 75W) |
| Storage | 4 hot-swap 3.5" SATA drive bays4 fixed 2.5" SATA drive bays2 M-key (PCIe5.0 x4); support 2280/2260/2242/2230 form factor |
| Networking | 2 RJ45 (10GbE)1 dedicated IPMI |
| Power | 1+1, 80-PLUS Platinum, 750W Slim PSU |
| Cooling | 6 PWM easy-swap 40x56 mm fans |
| Dimensions (D × W × H) | 676.5 x 438 x 43.4 mm (26.6" x 17.2" x 1.7") |
| Management | Dedicated BMC (IPMI) TPM (13-pin, SPI) accessory |
Exact CPU, memory, drive and network parts are fixed on your quote. GPU and platform names are trademarks of their respective owners.

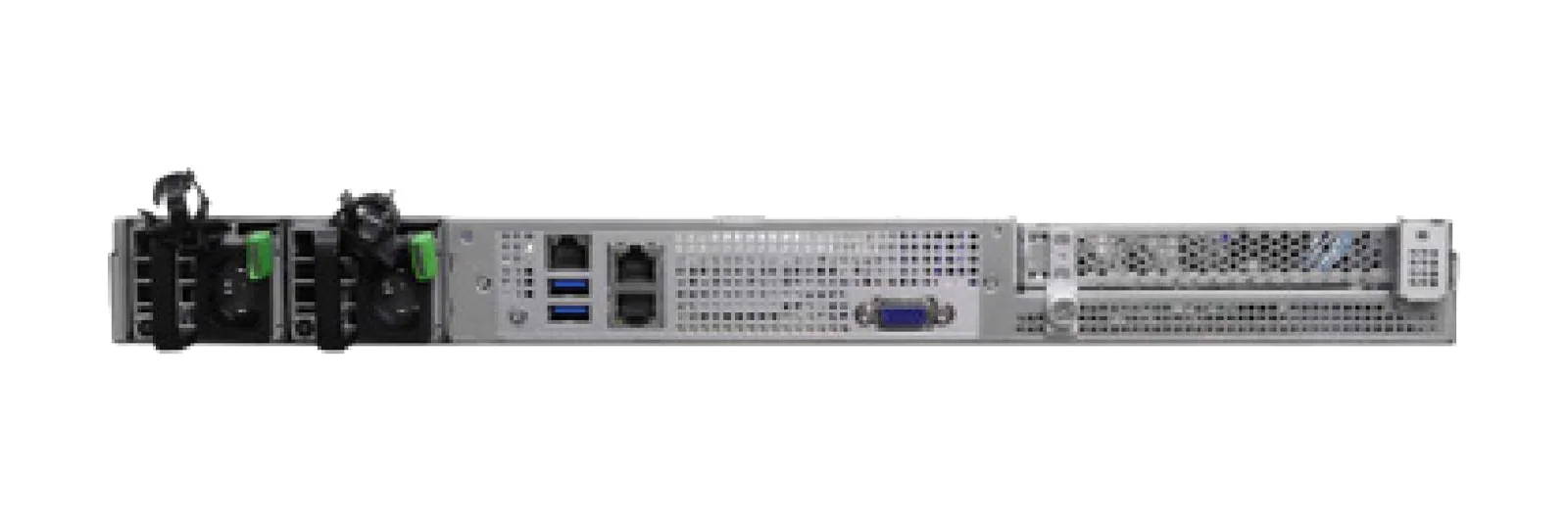

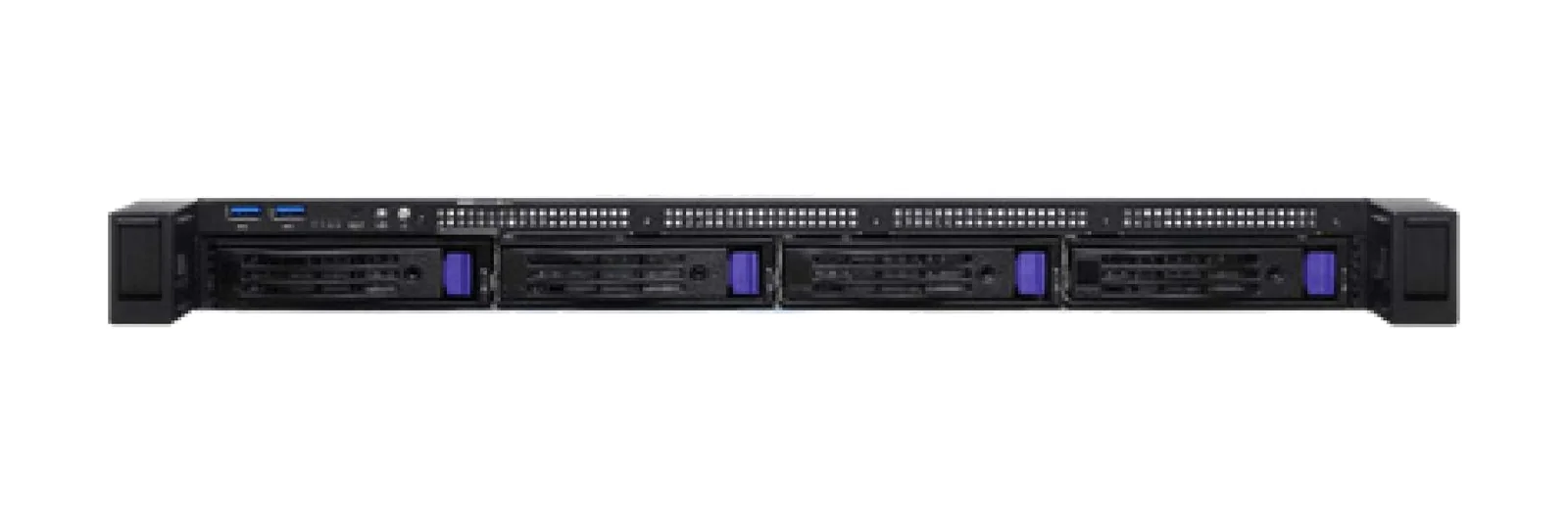

Views
