S-SERIES · STORAGE

GL-S1U-8S2F

8 × 2.5″ SATA/SAS + 2 × NVMe

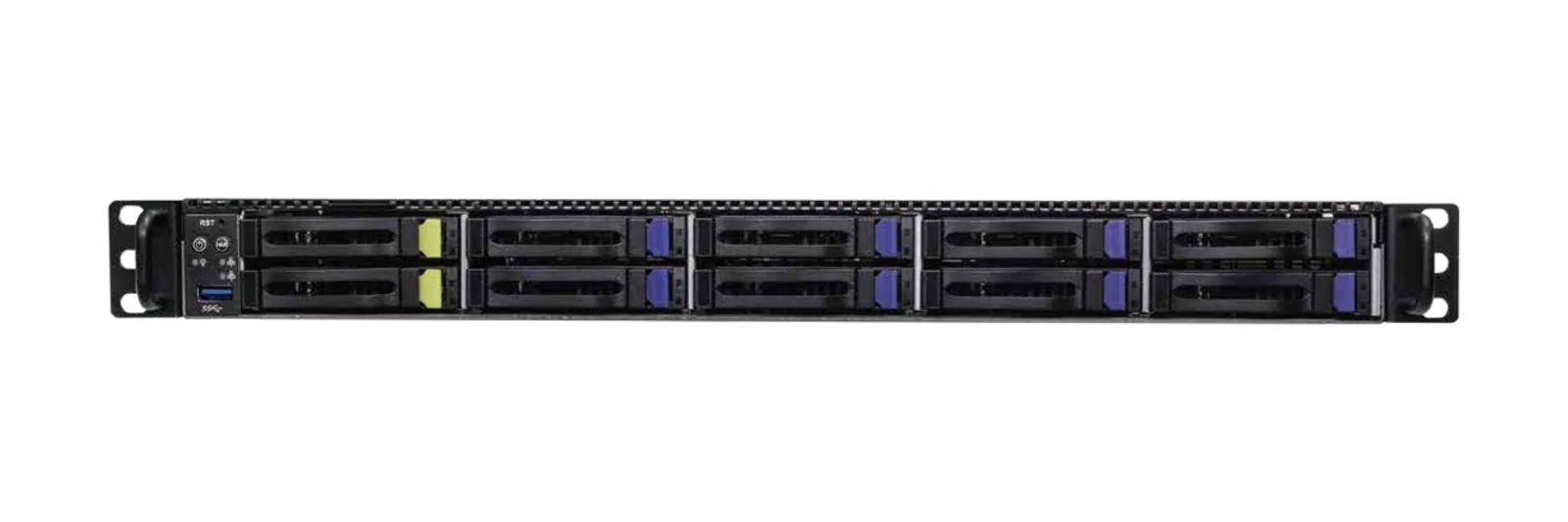

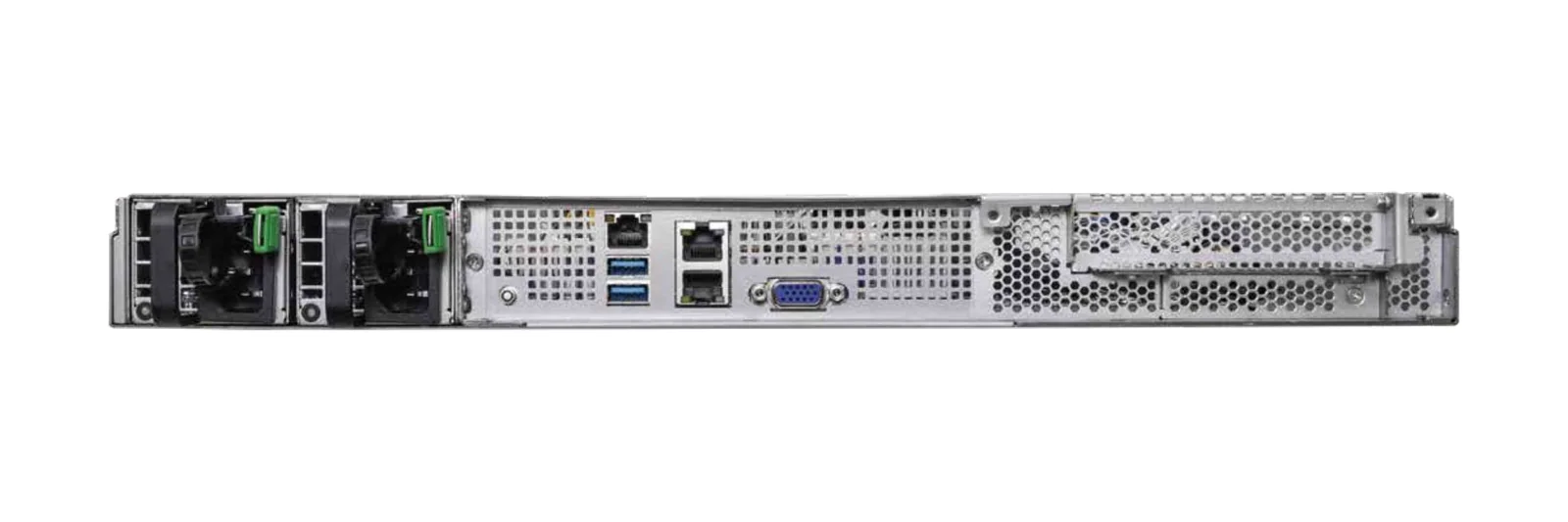

1U storage server with 8 × 2.5″ SATA/SAS + 2 × NVMe bays. One chassis, 2 host platforms: 3rd Gen Intel Xeon and AMD EPYC 7002. Validated with GenesysBench™ and deployed under GLIDS.

Drive bays: 8× 2.5″ SATA/SAS · 2× NVMe
Height: 1U
Sockets: 1

Configure this system Talk to a Solutions Architect

Specifications

Pick the host platform. The chassis, power and cooling follow it.

Previous generation. Still supported by GLabs; ask a solutions architect about availability.

GL-S1U-8S2F: 3rd Gen Intel Xeon specifications
Form factor	1U Rackmount
Processor	1 Socket P+ (LGA4189) for 3rd Gen Intel® Xeon® Scalable Processors
Expansion	1 FHHL PCIe4.0 x16
Storage	2 Hot-swap 2.5" NVMe/SATA drive bays8 Hot-swap 2.5" SATA drive bays1 M-key (PCIe3.0 x4 or SATA 6Gb/s), 2280 form factor
Networking	2 RJ45 (10GbE)1 dedicated IPMI
Power	1+1 750W RPSU
Cooling	6 PWM 40x56 mm fans
Dimensions (D × W × H)	625 mm x 430 mm x 43.5 mm

Previous generation. Still supported by GLabs; ask a solutions architect about availability.

GL-S1U-8S2F: AMD EPYC 7002 specifications
Form factor	1U Rackmount
Processor	1 Socket SP3 (LGA4094), AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology )/7002 series processors
Expansion	1 FHHL PCIe4.0 x16
Storage	2 Hot-swap 2.5" NVMe (PCIe3.0 x4)/SATA drive bays8 Hot-swap 2.5" SATA drive bays1 M-key (PCIe4.0 x4 or SATA 6Gb/s), 2280 form factor
Networking	2 RJ45 (10GbE)1 dedicated IPMI
Power	1+1, 80-PLUS Platinum, 750W Slim PSU
Cooling	6 PWM 40x56 mm fans
Dimensions (D × W × H)	625 x 430 x 43.5 mm (24.6'' x 16.9'' x 1.7'')
