S-SERIES · STORAGE
GL-S1U-24F
24 × NVMe
1U storage server with 24 × NVMe bays. Host platform: AMD EPYC 9004. Validated with GenesysBench™ and deployed under GLIDS.
- Memory
- 24 DIMM slots
- Drive bays
- 24× NVMe
- Height
- 1U
- Sockets
- 1
Specifications
Full public specification.
| Form factor | 1U Rackmount |
|---|---|
| Processor | 1 Socket SP5 (LGA 6096) AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors |
| CPU TDP | Up to 300W |
| Memory | 24 DIMM (2DPC) |
| Expansion | 1 FHHL PCIe5.0 x16 1 OCP NIC 3.0 (PCIe5.0 x16) |
| Storage | 24 hot-swap E1.S (PCIe5.0 x4) drive bays, 9.5mm/15mm width |
| Networking | Broadcom BCM57416: 2 RJ45 (10GbE) Intel® i210: 2 RJ45 (1GbE)1 dedicated IPMI |
| Power | 1+1 ,80-PLUS Platinum, 1600W RPSU |
| Cooling | 7 PWM hot-swap 40x56 mm fans |
| Dimensions (D × W × H) | 776.5 x 438 x 43.5 mm (30.6" x 17.2" x 1.7") |
| Management | Dedicated BMC (IPMI) TPM (13-pin, SPI) accessory |
Exact CPU, memory, drive and network parts are fixed on your quote. GPU and platform names are trademarks of their respective owners.

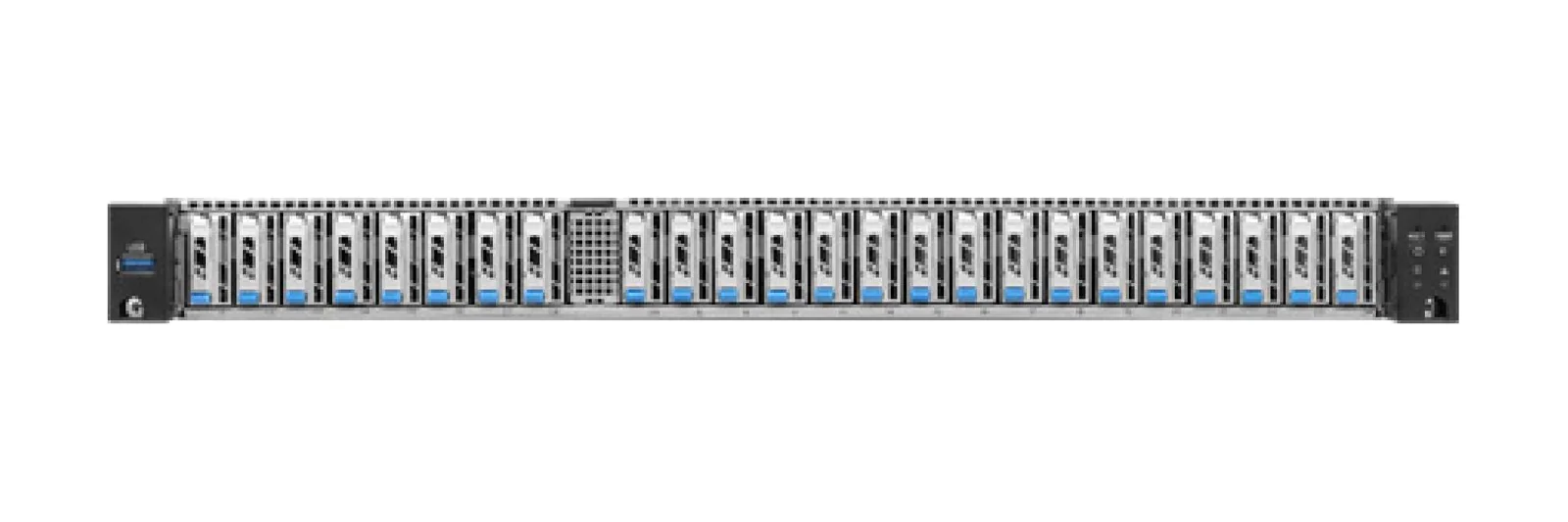

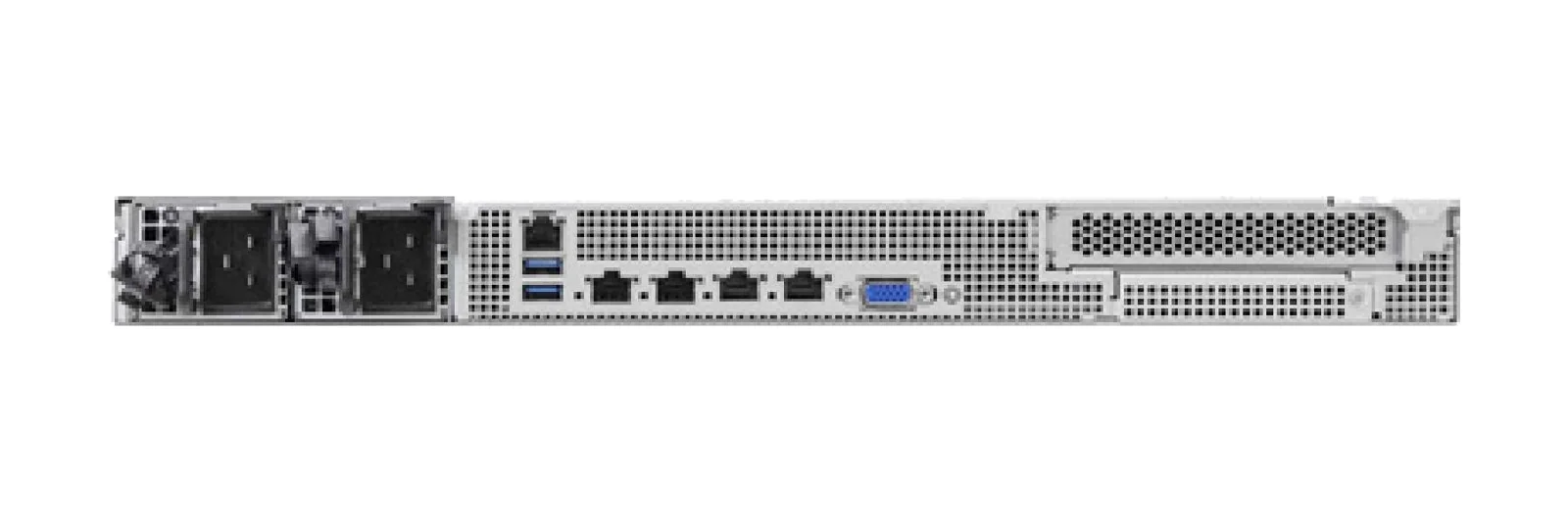

Views
