S-SERIES · STORAGE

GL-S1U-12F

12 × NVMe

1U storage server with 12 × NVMe bays. One chassis, 4 host platforms: AMD EPYC 9004, AMD EPYC 9005, Intel Xeon 6 and 5th / 4th Gen Intel Xeon. Validated with GenesysBench™ and deployed under GLIDS.

Drive bays: 12× NVMe
Height: 1U
Sockets: 1 or 2

Configure this system Talk to a Solutions Architect

Specifications

Pick the host platform. The chassis, power and cooling follow it.

GL-S1U-12F: AMD EPYC 9004 · Variant A specifications
Form factor	1U Rackmount
Processor	1 Socket SP5 (LGA 6096); AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
CPU TDP	Up to 300W
Expansion	2 FHHL PCIe5.0 x16 1 OCP NIC 3.0 (PCIe5.0 x16)
Storage	12 hot-swap 2.5" NVMe (PCIe5.0 x4)/SATA/SAS drive bays2 M-key (PCIe5.0 x4), support 22110/2280/2260 form factor
Networking	2 RJ45 (10GbE)2 RJ45 (1GbE)1 dedicated IPMI
Power	1+1, 80-Plus Platinum, 1000W Slim PSU
Cooling	6 PWM hot-swap 40x56 mm fans
Dimensions (D × W × H)	676.5 x 438 x 43.4 mm (26.6" x 17.2" x 1.7")
Management	Dedicated BMC (IPMI) TPM (13-pin, SPI) accessory

GL-S1U-12F: AMD EPYC 9005 · Variant A specifications
Form factor	1U Rackmount
Processor	1 Socket SP5 (LGA 6096); AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
CPU TDP	Up to 300W
Expansion	2 FHHL PCIe5.0 x16 1 OCP NIC 3.0 (PCIe5.0 x16)
Storage	12 hot-swap 2.5" NVMe (PCIe5.0 x4)/SATA/SAS drive bays2 M-key (PCIe5.0 x4), support 22110/2280/2260 form factor
Networking	2 RJ45 (10GbE)2 RJ45 (1GbE)1 dedicated IPMI
Power	1+1, 80-Plus Platinum, 1000W Slim PSU
Cooling	6 PWM hot-swap 40x56 mm fans
Dimensions (D × W × H)	676.5 x 438 x 43.4 mm (26.6" x 17.2" x 1.7")
Management	Dedicated BMC (IPMI) TPM (13-pin, SPI) accessory

GL-S1U-12F: AMD EPYC 9004 · Variant B specifications
Form factor	1U Rackmount
Processor	1 Socket SP5 (LGA 6096); AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
CPU TDP	Up to 360W
Expansion	2 FHHL PCIe5.0 x16 1 OCP NIC 3.0 (PCIe5.0 x16)
Storage	12 hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays2 M-key (PCIe5.0 x4 or SATA 6Gb/s), support 22110/2280/2260 form factor
Networking	1 dedicated IPMI
Power	1+1, 80-Plus Platinum, 1600W Slim RPSU
Cooling	7 PWM hot-swap 40x56 mm fans
Dimensions (D × W × H)	776.5 x 438 x 43.5 mm (30.6" x 17.2" x 1.7")
Management	Dedicated BMC (IPMI) TPM (13-pin, SPI) accessory

GL-S1U-12F: AMD EPYC 9005 · Variant B specifications
Form factor	1U Rackmount
Processor	1 Socket SP5 (LGA 6096); AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
Expansion	1 FHHL PCIe5.0 x16 1 OCP NIC 3.0 (PCIe5.0 x16)
Storage	12 hot-swap E3.S (PCIe5.0 x4) drive bays2 M-key (PCIe5.0 x4 or SATA 6Gb/s), support 22110/2280/2260 form factor
Networking	1 dedicated IPMI
Power	1+1, 80-Plus Platinum, 1600W CRPS
Cooling	8 PWM 40x56 mm dual-rotor fans
Dimensions (D × W × H)	820 x 438 x 43.5 mm (32.3" x 17.2" x 1.7")
Management	Dedicated BMC (IPMI) TPM (13-pin, SPI) accessory

GL-S1U-12F: AMD EPYC 9005 · Variant C specifications
Form factor	1U Rackmount
Processor	1+1 Socket SP5 (LGA 6096); AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
CPU TDP	Up to 360W
Expansion	2 FHHL PCIe5.0 x16 1 OCP NIC 3.0 (PCIe5.0 x16)
Storage	12 hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays1 M-key (PCIe3.0 x4), 2280/2260/2242/2230 form factor1 M-key (PCIe3.0 x4), 2280/2242 form factor
Networking	2 RJ45 (1GbE)1 dedicated IPMI
Power	1+1, 80-PLUS Platinum, 2000W CRPS
Cooling	8 easy-swap 40x56 mm fans
Dimensions (D × W × H)	830 x 438 x 43.5 mm (32.7" x 17.2" x 1.7")
Management	Dedicated BMC (IPMI) SPI TPM (13-pin, SPI) accessory

GL-S1U-12F: AMD EPYC 9005 · Variant D specifications
Form factor	1U Rackmount
Processor	1+1 Socket SP5 (LGA 6096); AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
CPU TDP	Up to 240W
Expansion	2 FHHL PCIe5.0 x16 1 OCP3.0 PCIe5.0 x16
Storage	12 hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays1 M-key (PCIe3.0 x4), 2280/2260/2242/2230 form factor1 M-key (PCIe3.0 x4), 2280/2242 form factor
Networking	2 RJ45 (1GbE)1 dedicated IPMI
Power	1+1, 80-PLUS Platinum, 1600W CRPS
Cooling	8 easy-swap 40x56 mm fans
Dimensions (D × W × H)	830 x 438 x 43.5 mm (32.7" x 17.2" x 1.7")
Management	Dedicated BMC (IPMI) TPM (13-pin, SPI) accessory

GL-S1U-12F: Intel Xeon 6 specifications
Form factor	1U Rackmount
Processor	1+1 Socket E2 (LGA 4710) Intel® Xeon® 6700P-series, 6500P-series, and 6700E-series processors
CPU TDP	Up to 350W
Expansion	2 FHHL single-slot PCIe5.0 x16 2 OCP NIC 3.0 (PCIe5.0 x16)
Storage	12 hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays2 M-key (PCIe5.0 x4), 22110/2280 form factor
Networking	2 RJ45 (1GbE)1 dedicated IPMI
Power	1+1, 80-PLUS Titanium, 2000W CRPS
Cooling	8 PWM Hot-swap 40x56 mm fans
Dimensions (D × W × H)	830 x 438 x 43.5 mm (32.7" x 17.2" x 1.7")

Previous generation. Still supported by GLabs; ask a solutions architect about availability.

GL-S1U-12F: 5th / 4th Gen Intel Xeon · Variant A specifications
Form factor	1U Rackmount
Processor	1+1 Socket E (LGA 4677); Supports 5th & 4th Gen Intel® Xeon® Scalable processors
Storage	12 Hot-swap 2.5" NVMe drive bays2 M-key (PCIe4.0 x4), support 22110/2280 form factor
Networking	1 RJ45 (COM)1 dedicated IPMI
Power	1+1, 80-PLUS Platinum, 2100W CRPS PSU
Cooling	8 PWM Oxed 60x56 mm fans
Dimensions (D × W × H)	800 x 438 x 37 mm (31.50" x 17.24" x 1.47")

Previous generation. Still supported by GLabs; ask a solutions architect about availability.

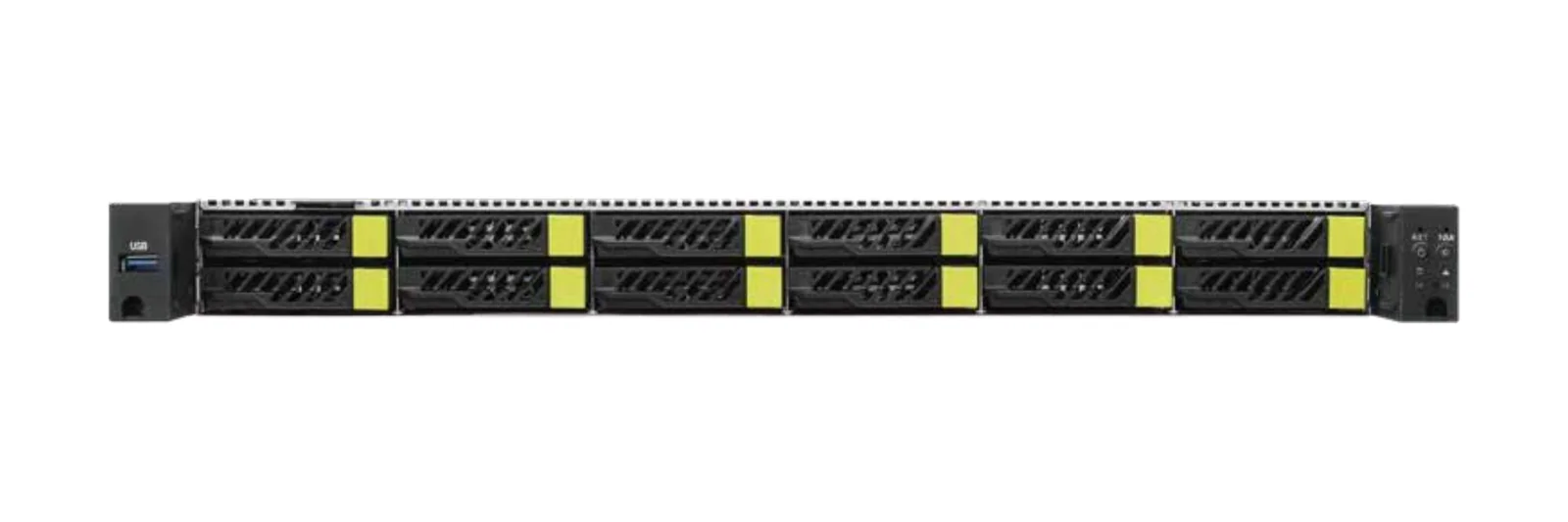

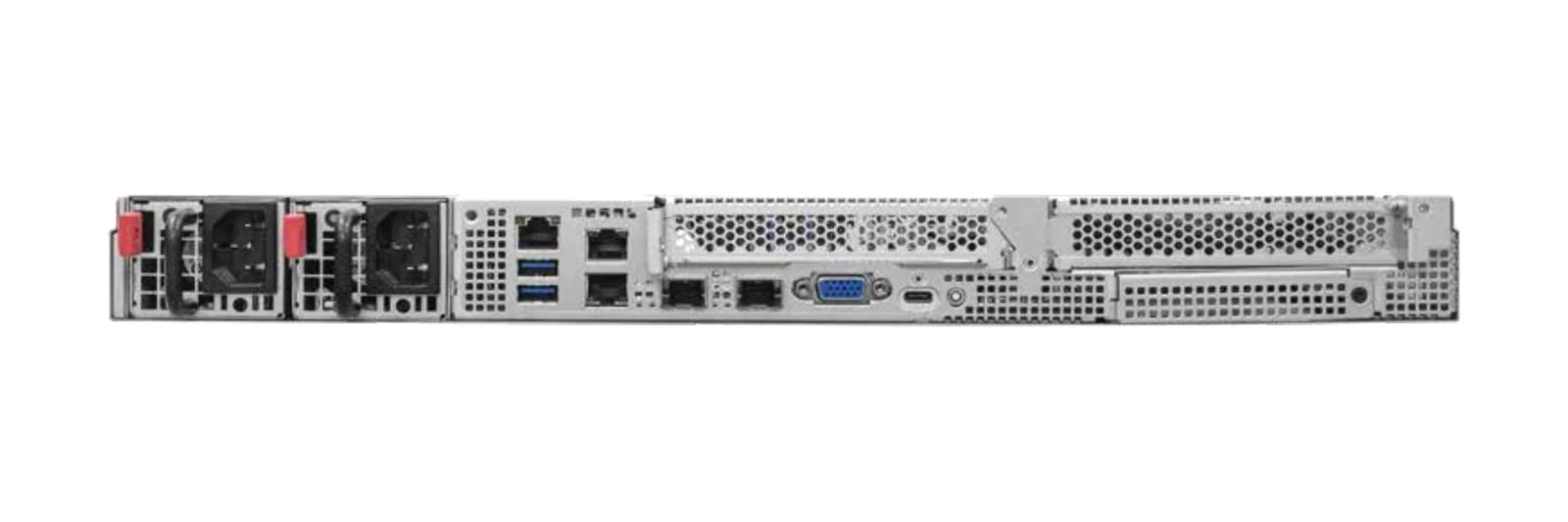

GL-S1U-12F: 5th / 4th Gen Intel Xeon · Variant B specifications
Form factor	1U Rackmount
Processor	1 Socket E (LGA 4677); Supports 5th & 4th Gen Intel® Xeon® Scalable processors
Expansion	1 FHHL PCIe5.0 x8 1 OCP NIC 3.0 (PCIe5.0 x16)
Storage	12 Hot-swap 2.5" NVMe (PCIe5.0 x4)/SATA/SAS drive bays1 M keyNote2 (PCIe3.0 x4 or SATA 6Gb/s); 22110/2280 form factor 1 M keyNote2 (PCIe3.0 x 2 or SATA 6Gb/s); 2280 form factor
Networking	2 SFP28 (25GbE)2 RJ45 (1GbE) Intel® i3501 dedicated IPMI
Power	1+1, 80-PLUS Platinum, 1000W Slim PSU
Cooling	6 PWM Hot-swap 40x56 mm fans
Dimensions (D × W × H)	676.5 x 438 x 43.4 mm (26.63" x 17.24" x 1.71")
