S-SERIES · STORAGE

GL-S1U-10F

10 × NVMe

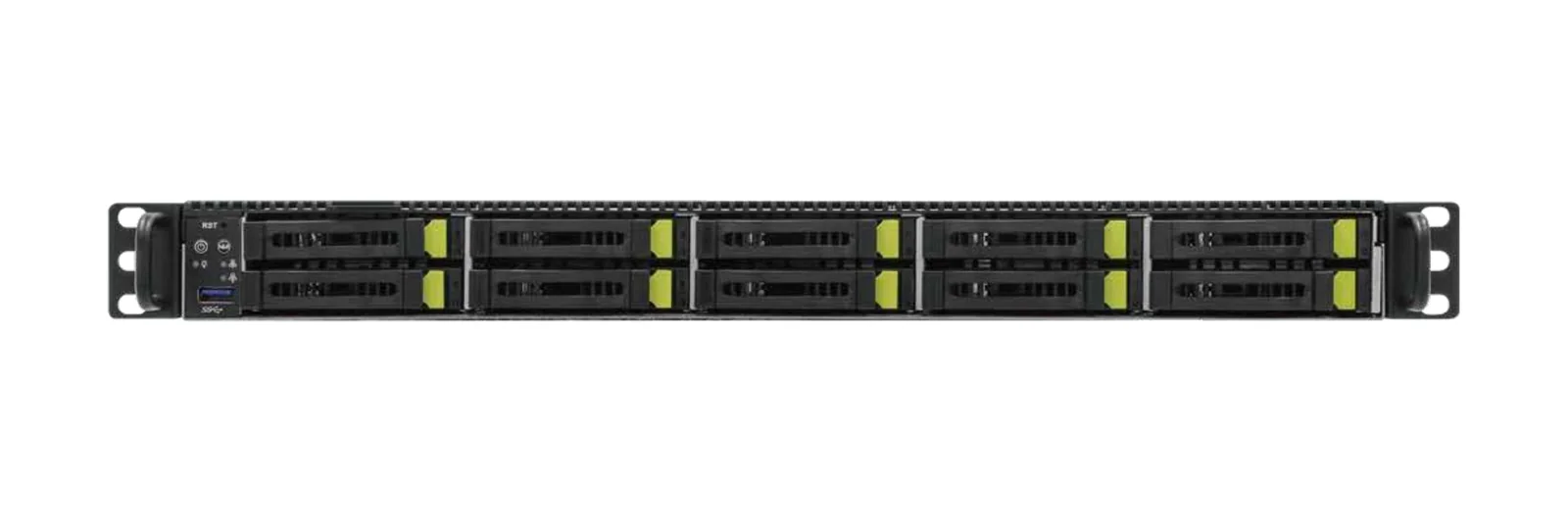

1U storage server with 10 × NVMe bays. One chassis, 3 host platforms: 3rd Gen Intel Xeon, AMD EPYC 7002 and AMD EPYC 7003. Validated with GenesysBench™ and deployed under GLIDS.

Drive bays: 10× NVMe
Height: 1U
Sockets: 1 or 2

Configure this system Talk to a Solutions Architect

Specifications

Pick the host platform. The chassis, power and cooling follow it.

Previous generation. Still supported by GLabs; ask a solutions architect about availability.

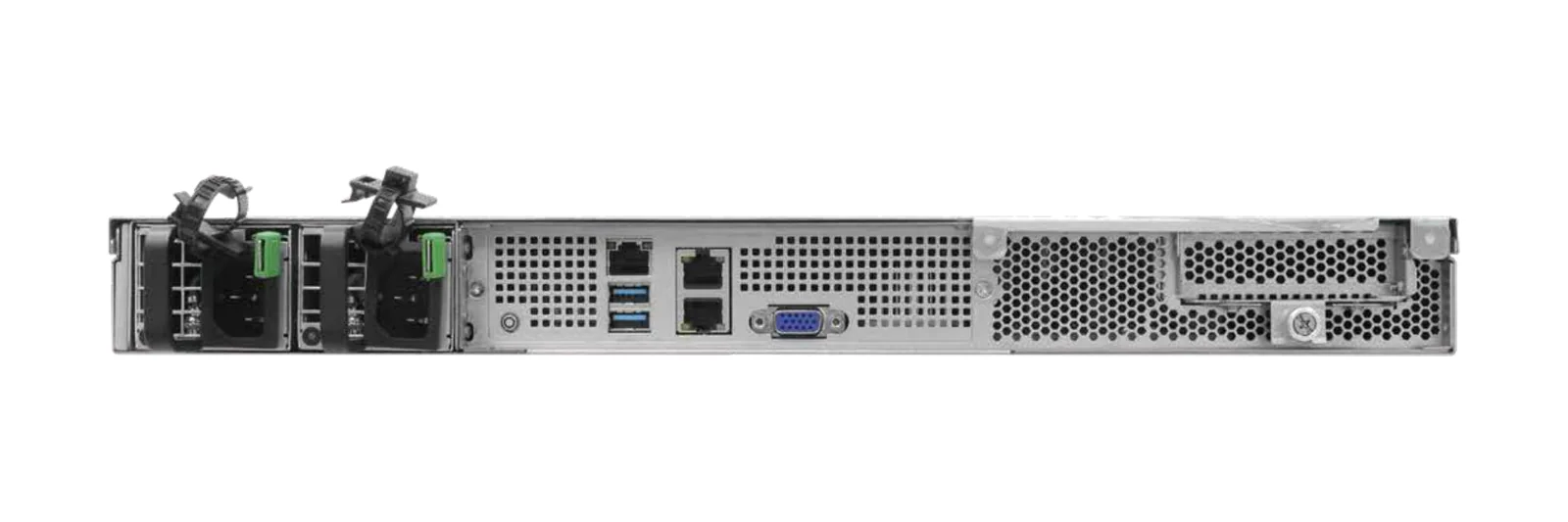

GL-S1U-10F: 3rd Gen Intel Xeon · Variant A specifications
Form factor	1U Rackmount
Processor	1 Socket P+ (LGA4189) for 3rd Gen Intel® Xeon® Scalable Processors
Expansion	1 FHHL PCIe4.0 x16
Storage	10 Hot-swap 2.5" NVMe drive bays1 M-key (PCIe3.0 x4 or SATA 6Gb/s), 2280 form factor1 M-key (PCIe4.0 x4 or SATA 6Gb/s) RDV, 2280 form factor
Networking	2 RJ45 (10GbE)1 dedicated IPMI
Power	1+1 750W RPSU
Cooling	6 PWM 40x56 mm fans
Dimensions (D × W × H)	625 x 430 x 43.5 mm (24.61'' x 16.93'' x 1.71'')

Previous generation. Still supported by GLabs; ask a solutions architect about availability.

GL-S1U-10F: 3rd Gen Intel Xeon · Variant B specifications
Form factor	1U Rackmount
Processor	1+1 Socket P+ (LGA4189) for 3rd Gen Intel® Xeon® Scalable Processors
Expansion	2 FHHL PCIe4.0 x16 1 OCP3.0 PCIe4.0 x16
Storage	10 Hot-swap 2.5" NVMe (PCIe4.0 x4) drive bays1 M-key (PCIe3.0 x4 or SATA 6Gb/s), 2280/2260/2242 form factor
Networking	1 dedicated IPMI
Power	1+1 1600W CRPS
Cooling	8 PWM Hot-swap 40x56 mm fans
Dimensions (D × W × H)	438 x 800 x 43.5 mm (17'' x 31'' x 2'')

Previous generation. Still supported by GLabs; ask a solutions architect about availability.

GL-S1U-10F: AMD EPYC 7002 specifications
Form factor	1U Rackmount
Processor	1 Socket SP3(LGA4094), AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology )/7002 series processors
Memory	8 DIMM Slots, Supports Eight-Channel DDR4 3200/2933/2666/2400 R DIMM (Modules up to 64GB Supported), and LR DIMM (Modules up to 256GB Supported)
Storage	10 x 2.5" NVMe (PCIe3.0 x4) SSDs or 10xSATA3 6.0Gb/s1 M-key (PCIe3.0 x4 or SATA 6Gb/s), 2280/2242 form factor
Networking	10000/1000/100/10 Mbps2 x RJ45 10GLAN 1 x RJ45 Dedicated IPMI LAN port
Power	2(1+1)750W
Cooling	6 x 40*56 mm fans
Dimensions (D × W × H)	625 x 430 x 43.5 mm (24.6'' x 16.9'' x 1.7'')

Previous generation. Still supported by GLabs; ask a solutions architect about availability.

GL-S1U-10F: AMD EPYC 7003 specifications
Form factor	1U Rackmount
Processor	1+1 Socket SP3 (LGA4094), AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology )/7002 series processors
Expansion	2 FHHL PCIe4.0 x16 1 OCP3.0 PCIe4.0 x16
Storage	10 Hot-swap 2.5" NVMe (PCIe4.0 x4) drive bays1 M-key (PCIe3.0 x2); support 2280/2260/2242/2230 form factor1 M-key (PCIe3.0 x4 or SATA 6Gb/s); support 2280/2242 form factor
Networking	1 dedicated IPMI
Power	1+1, 1600W CRPS
Cooling	8 PWM 40x56 mm fans
Dimensions (D × W × H)	800 x 438 x 43.5 mm (31.5" x 17.2" x 1.7")
