N-SERIES · MULTI-NODEOPEN RACK
GL-N1OU-3N
3 nodes · Open Rack
1OU multi-node server with 3 nodes for Open Rack (3 nodes/OU). Host platform: AMD EPYC 8005/8004. Validated with GenesysBench™ and deployed under GLIDS.
- Memory
- 10 DIMM slots
- NVMe bays
- 1×
- Nodes
- 3
- Height
- 1OU
Specifications
Full public specification.
| Form factor | 1OU, three-bay shelf for ORv3 |
|---|---|
| Processor | 1 Socket SP6 (LGA 4844); AMD EPYC™ 8005/8004 series processors |
| Memory | 10 DDR5 288-pin DIMM slots; RDIMM, RDIMM-3DS |
| Storage | 1 OCP NIC 3.0 (PCIe5.0 x16)1 hot-swap 2.5" NVMe (PCIe5.0 x4) drive bay2 M-key (PCIe5.0 x4 or SATA 6Gb/s), 22110/2280 form factor |
| Networking | 1 dedicated IPMI |
| Power | 1 IT Gear connector for ORv3 50V busbarCentralized 50/48V busbar to , distributing up to 1600W |
| Cooling | 4 dual-rotor Jxed 40x56mm fans |
| Dimensions (D × W × H) | 537 x 800 x 45.5mm (21.1" x 31.5" x 1.79", shelf dimensions) |
Exact CPU, memory, drive and network parts are fixed on your quote. Open Rack sleds use the OU height unit. GPU and platform names are trademarks of their respective owners.

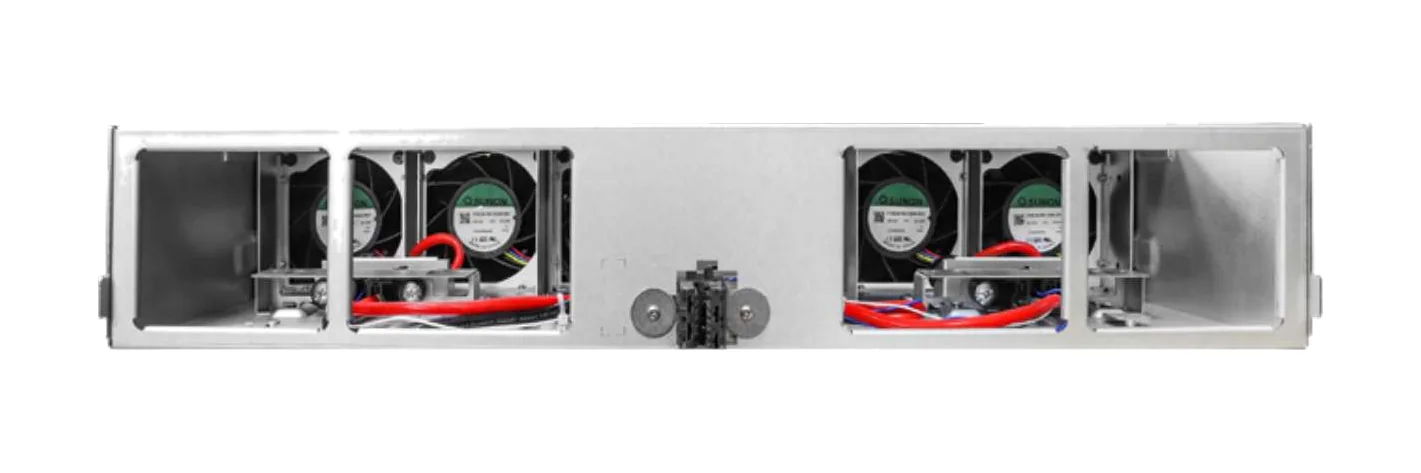

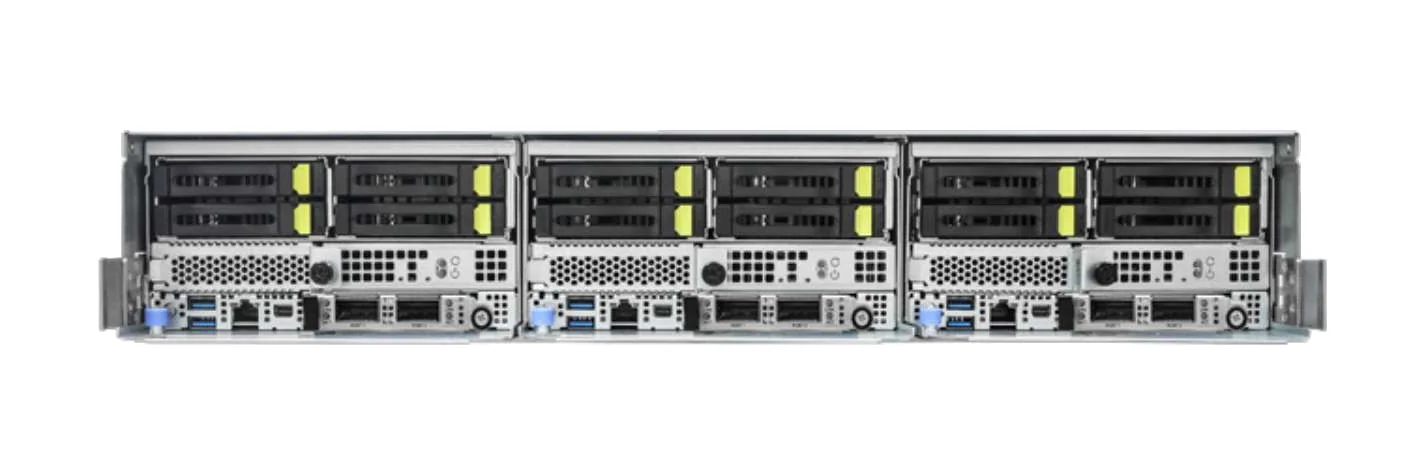

Views
