G-SERIES · SCALE-OUT GPU

GL-G1U-4G

Up to 4 GPUs

1U scale-out GPU server for up to 4 PCIe GPUs. Host platform: AMD EPYC 7002. Validated with GenesysBench™ and deployed under GLIDS; AI workloads run on the GLabs AI Stack.

GPUs: up to 4
Memory: 8 DIMM slots
Height: 1U
Sockets: 1

Configure this system Talk to a Solutions Architect

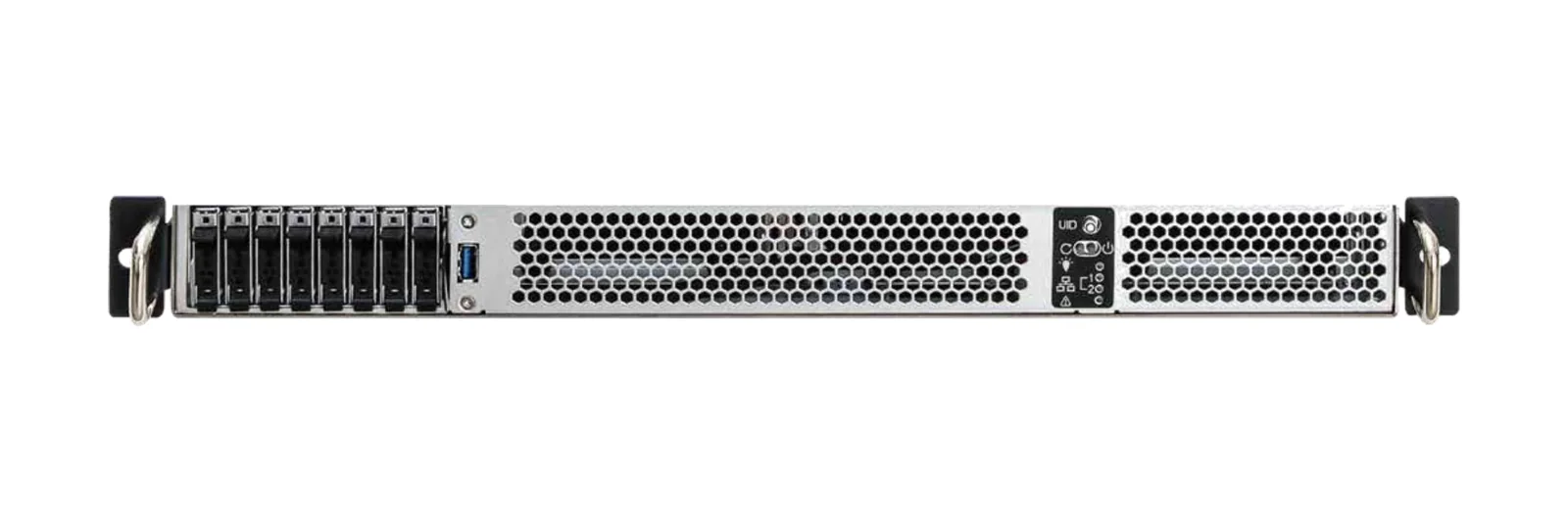

GL-G1U-4G, scale-out gpu server, overview

Specifications

Pick the host platform. The chassis, power and cooling follow it.

Previous generation. Still supported by GLabs; ask a solutions architect about availability.

GL-G1U-4G: AMD EPYC 7002 · Variant A specifications
Form factor	1U Rackmount
Processor	1 Socket SP3 (LGA4094), AMD EPYC™ 7003 (with AMD
Memory	8 DDR4 DIMM slots (1DPC)
Expansion	3 PCIe4.0 x16 for dual slot cards1 PCIe4.0 x16 for a dual slot card 2 PCIe4.0 x16 for low-profile cards
Storage	8 E1.S or M.2 (PCIe4.0x4)
Networking	2 RJ45 (1GbE)1 dedicated IPMI
Power	1+1, 80-PLUS Platinum, 2000W CRPS
Cooling	8 dual-rotor 40x56 mm fans
Dimensions (D × W × H)	880 x 438 x 43.5 mm (34.6" x 17.2" x 1.7")

Previous generation. Still supported by GLabs; ask a solutions architect about availability.

GL-G1U-4G: AMD EPYC 7002 · Variant B specifications
Form factor	1U Rackmount
Processor	3D V-Cache™ Technology )/7002 series processors
Memory	8 DDR4 DIMM slots (1DPC)
Expansion	3 PCIe4.0 x16 for dual slot cards1 PCIe4.0 x16 for a dual slot card 2 PCIe4.0 x16 for low-profile cards
Storage	2 Hot-swap 2.5" NVMe (PCIe4.0 x4) drive bays
Networking	2 RJ45 (1GbE)1 dedicated IPMI
Power	1+1, 80-PLUS Platinum, 2000W CRPS
Cooling	8 dual-rotor 40x56 mm fans
Dimensions (D × W × H)	880 x 438 x 43.5 mm (34.6" x 17.2" x 1.7")
