G-SERIES · SCALE-OUT GPU

GL-G1U-1G

Up to 1 GPU

1U scale-out GPU server for up to 1 PCIe GPU. One chassis, 6 host platforms: AMD EPYC 4005/4004, Intel Xeon E-2300/E-2400, AMD EPYC 9004, Intel Core (W680), 5th / 4th Gen Intel Xeon and AMD EPYC 7003. Validated with GenesysBench™ and deployed under GLIDS; AI workloads run on the GLabs AI Stack.

GPUs: up to 1
Height: 1U
Sockets: 1

Configure this system Talk to a Solutions Architect

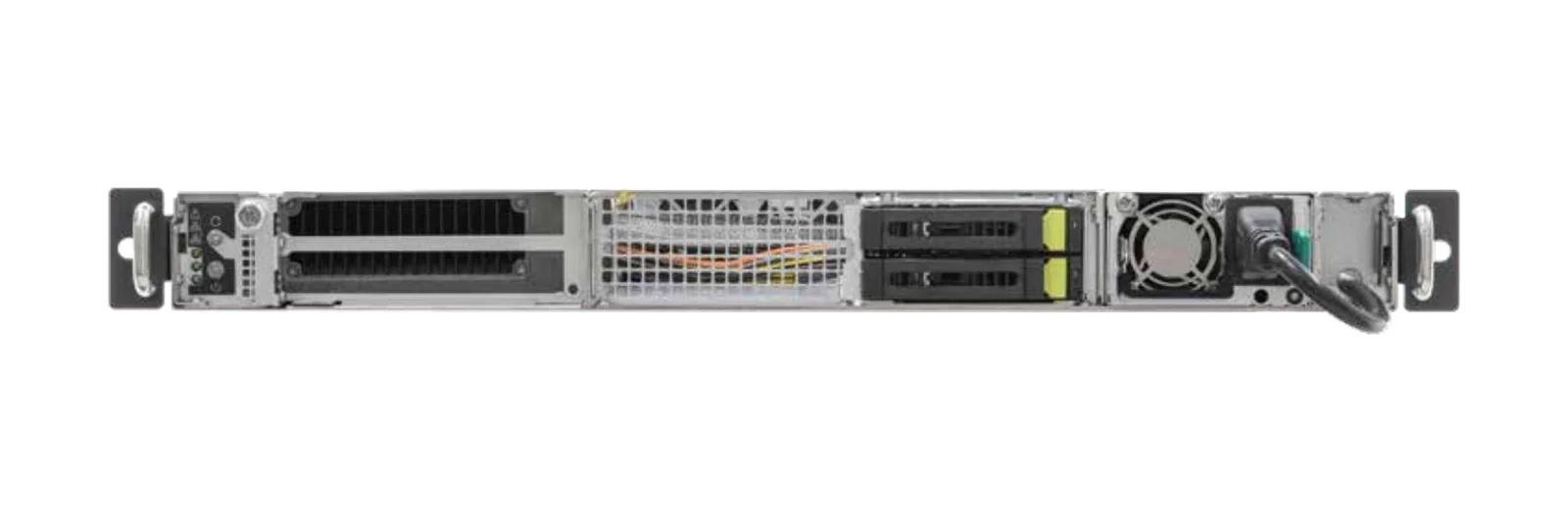

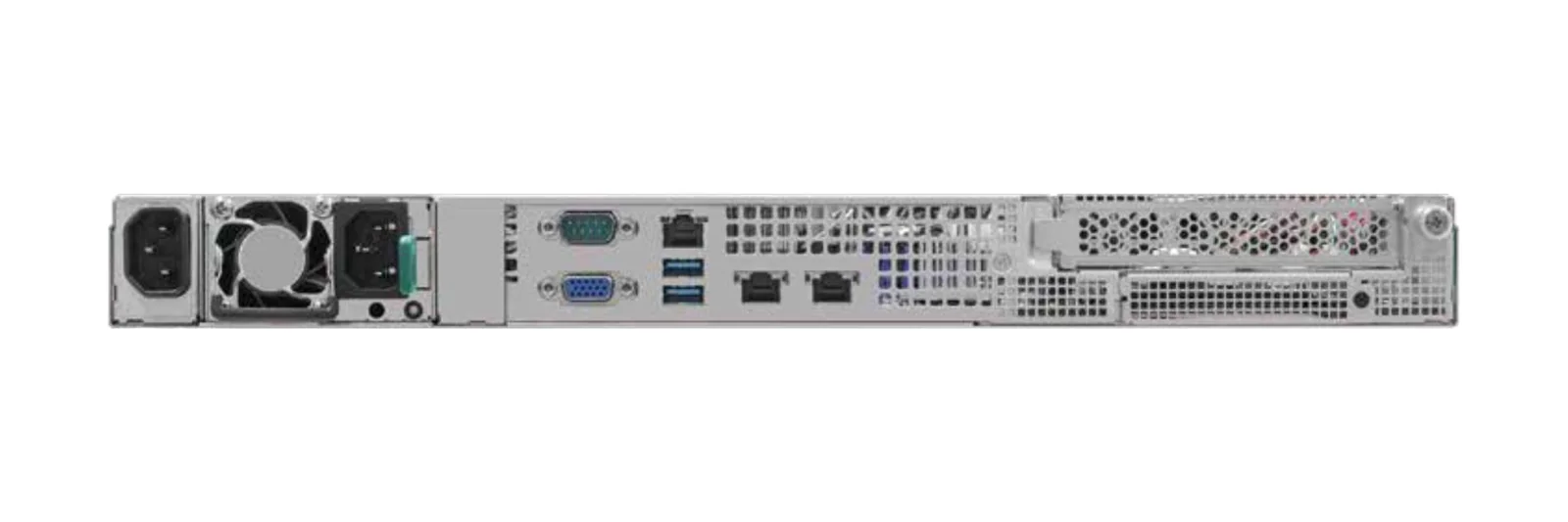

GL-G1U-1G, scale-out gpu server, overview

Specifications

Pick the host platform. The chassis, power and cooling follow it.

GL-G1U-1G: AMD EPYC 4005/4004 · Variant A specifications
Form factor	1U Rackmount
Processor	1 Socket AM5 (LGA1718); AMD Ryzen™ 7000 series processors
Expansion	1 FHHL PCIe4.0 x41 FHFL dual-slot PCIe5.0 x16
Storage	2 hot-swap 2.5" SATA drive bays1 M-key (PCIe5.0 x4); 2280/2242 form factor
Power	1+1, 80-PLUS Platinum, 1300W CRPS
Cooling	6 PWM dual-rotor 40x56 mm fans
Dimensions (D × W × H)	660.4 x 438 x 43.5 mm (26.00" x 17.24" x 1.71")
Management	Dedicated BMC (IPMI)

GL-G1U-1G: AMD EPYC 4005/4004 · Variant B specifications
Form factor	1U Rackmount
Processor	1 Socket AM5 (LGA1718); AMD Ryzen™ 7000 series processors
Expansion	1 FHHL PCIe4.0 x41 FHFL dual-slot PCIe5.0 x16
Storage	2 hot-swap 2.5" SATA drive bays1 M-key (PCIe5.0 x4); 2280/2242 form factor1 M-key (PCIe4.0 x4); 2280/2242 form factor
Power	1+1, 80-PLUS Platinum, 1300W CRPS
Cooling	6 PWM dual-rotor 40x56 mm fans
Dimensions (D × W × H)	660.4 x 438 x 43.5 mm (26.00" x 17.24" x 1.71")
Management	Dedicated BMC (IPMI)

GL-G1U-1G: Intel Xeon E-2300/E-2400 specifications
Form factor	1U Rackmount
Processor	1 Socket H5 (LGA1200); Intel® Xeon® E-2300 and 108h Gen Intel® Pentium® series processors
Memory	4 DDR4 288-pin DIMM Slots (2DPC); ECC/non-ECC UDIMM up to 32GB eachmax. 3200MT/s on Intel® Xeon® E-2300 series processorsmax. 2666MT/s on 108h Gen Intel® Pentium® series processors
Expansion	1 FHFL dual-slot PCIe4.0 x16
Storage	2 SFF 2.5" (SATA 6 Gb/s)1 M-key (PCIe3.0 x4 or SATA 6Gb/s); 22110/2280/2260 form factor1 M-key (PCIe3.0 x4); 2280/2260 form factor
Power	1+1 Platinum 1200W CRPS
Cooling	8 PWM dual-rotor 40x56 mm fans
Dimensions (D × W × H)	438 x 660.4 x 43.5 mm (without ear)
Management	Dedicated BMC (IPMI)

GL-G1U-1G: AMD EPYC 9004 specifications
Form factor	1U Rackmount
Processor	1 Socket SP5 (LGA 6096); AMD EPYC™ 9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors
Memory	8 DDR5 DIMM Slots (1DPC); RDIMM up to 128GB each, max. 5200MT/sRDIMM-3DS up to 256GB each, max. 5200MT/s
Expansion	1 FHFL dual-slot PCIe5.0 x161 FHHL PCIe5.0 x16 1 OCP NIC 3.0 (PCIe5.0 x16)
Storage	2 hot-swap 2.5" NVMe (PCIe4.0 x4) drive bays1 M-key (PCIe5.0 x4 or SATA 6Gb/s); 22110/2280 form factor1 M-key (PCIe5.0 x4 or SATA 6Gb/s); 2280 form factor
Networking	2 RJ45 (10GbE)1 dedicated IPMI
Power	1+1, 1600W CRPS
Cooling	6 PWM dual-rotor 40x56 mm fans
Dimensions (D × W × H)	653.5 x 438 x 43.5 mm (25.73" x 17.24" x 1.71")
Management	Dedicated BMC (IPMI)

GL-G1U-1G: Intel Core (W680) specifications
Processor	1 Socket LGA 1700; Supports Intel® Core™ 14th Gen, 13th & 12th Gen Intel® Core™ series processors
Expansion	1 FHFL dual-slot PCIe4.0 x16-RB1U2SL-G4/1U1GX570 and
Storage	4 Hot-swap 2.5" SATA 6Gb/s drive bays1 M-key (PCIe3.0 x4), support 2280/2260/2242/2230 form factor
Power	1+1, 80-PLUS Platinum, 800W CRPS
Cooling	5 PWM single-rotor 40x56 mm fans

Previous generation. Still supported by GLabs; ask a solutions architect about availability.

GL-G1U-1G: 5th / 4th Gen Intel Xeon specifications
Form factor	1U Rackmount
Processor	1 Socket E (LGA 4677); Supports 5th & 4th Gen Intel® Xeon® Scalable processors
Expansion	1 FHFL dual-slot PCIe5.0 x161 FHHL PCIe5.0 x16 1 OCP NIC 3.0 (PCIe5.0 x16)
Storage	2 Hot-swap 2.5" NVMe (PCIe4.0 x4) drive bays1 M-key (PCIe3.0 x4 or SATA 6Gb/s), 2280/2260 form factor1 M-key (PCIe3.0 x4 or SATA 6Gb/s), 22110/2280 form factor
Networking	2 RJ45 (10GbE)1 dedicated IPMI
Power	1+1, 1600W CRPS
Cooling	6 PWM dual-rotor 40x56 mm fans
Dimensions (D × W × H)	653.5 x 438.0 x 43.5 mm (25.73'' x 17.24'' x 1.71'')

Previous generation. Still supported by GLabs; ask a solutions architect about availability.

GL-G1U-1G: AMD EPYC 7003 specifications
Form factor	1U Rackmount
Processor	1 Socket SP3 (LGA4094), AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology)/7002 series processors
Expansion	1 FHFL dual-slot PCIe4.0 x161 FHFL PCIe3.0 x8
Storage	1 M-key (PCIe4.0 x4 or SATA 6Gb/s), 2280/2260/2242/2230 form factor1 M-key (PCIe4.0 x4 or SATA 6Gb/s), 22110/2280/2260/2242/2230 form factor
Power	1+1, 1200W/1300W CRPS
Cooling	3 single-rotor 40x56 mm fans 3 dual-rotor 40x56 mm fans
Dimensions (D × W × H)	660.4 x 438.0 x 43.5 mm (26" x 17.2" x 1.7")
