G-SERIES · SCALE-OUT GPU
GL-G1U-1G2F
Up to 1 GPU · 2 NVMe
1U scale-out GPU server for up to 1 PCIe GPU and 2 NVMe bays. One chassis, 2 host platforms: Intel Xeon 6 and AMD EPYC 9005. Validated with GenesysBench™ and deployed under GLIDS; AI workloads run on the GLabs AI Stack.
- GPUs
- up to 1
- Memory
- 8 DIMM slots
- Height
- 1U
- Sockets
- 1
Specifications
Pick the host platform. The chassis, power and cooling follow it.
| Form factor | 1U Rackmount |
|---|---|
| Processor | 1 Socket E2 (LGA 4710); Intel® Xeon® 6700P-series, 6500P-series, and 6700E-series processors |
| Memory | 8 DDR5 DIMM Slots (1DPC); RDIMM up to 128GB (2Rx4) each, max. 6400MT/sRDIMM-3DS up to 256GB (4Rx4) each, max. 6400MT/sMRDIMM up to 64GB (2Rx4) each, max. 8000MT/s |
| Expansion | 1 FHFL dual-slot PCIe5.0 x161 HHHL single-slot PCIe5.0 x16 1 OCP NIC 3.0 (PCIe5.0 x16) |
| Storage | 2 hot-swap 2.5" NVMe (PCIe4.0 x4) drive bays(PCIe5.0 / CXL2.0 x4); 2280 form factor (PCIe5.0 / CXL2.0 x4); 22110 form factor |
| Networking | 1 dedicated IPMI |
| Power | 1+1, 80-PLUS Titanium, 1600W CRPS |
| Cooling | 9 PWM hot-swap 40x56 mm fans1 PWM hot-swap 40x28 mm fan |
| Dimensions (D × W × H) | 650 x 438.0 x 43.5 mm (25.6" x 17.2" x 1.7") |
| Management | Dedicated BMC (IPMI) |
| Form factor | 1U Rackmount |
|---|---|
| Processor | 1 Socket SP5 (LGA 6096); AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and |
| CPU TDP | Up to 400W |
| Memory | 8 DDR5 DIMM Slots (1DPC); RDIMM up to 128GB each, max. 6400MT/sRDIMM-3DS up to 256GB each, max. 6400MT/s |
| Expansion | 1 FHFL dual-slot PCIe5.0 x161 HHHL single-slot PCIe5.0 x16 1 OCP NIC 3.0 (PCIe5.0 x16) |
| Storage | 2 hot-swap 2.5" NVMe (PCIe4.0 x4) drive bays2 M-key (PCIe5.0 x4 or SATA 6Gb/s); support 22110/2280 form factor |
| Networking | 1 dedicated IPMI |
| Power | 1+1, 80-PLUS Titanium, 2000W CRPS |
| Cooling | 9 PWM dual-rotor 40x56 mm fans1 PWM single-rotor 40x28 mm fan |
| Dimensions (D × W × H) | 650 x 438 x 43.5 mm (25.6" x 17.2" x 1.7") |
| Management | Dedicated BMC (IPMI) |
Exact CPU, memory, drive and network parts are fixed on your quote. GPU and platform names are trademarks of their respective owners.

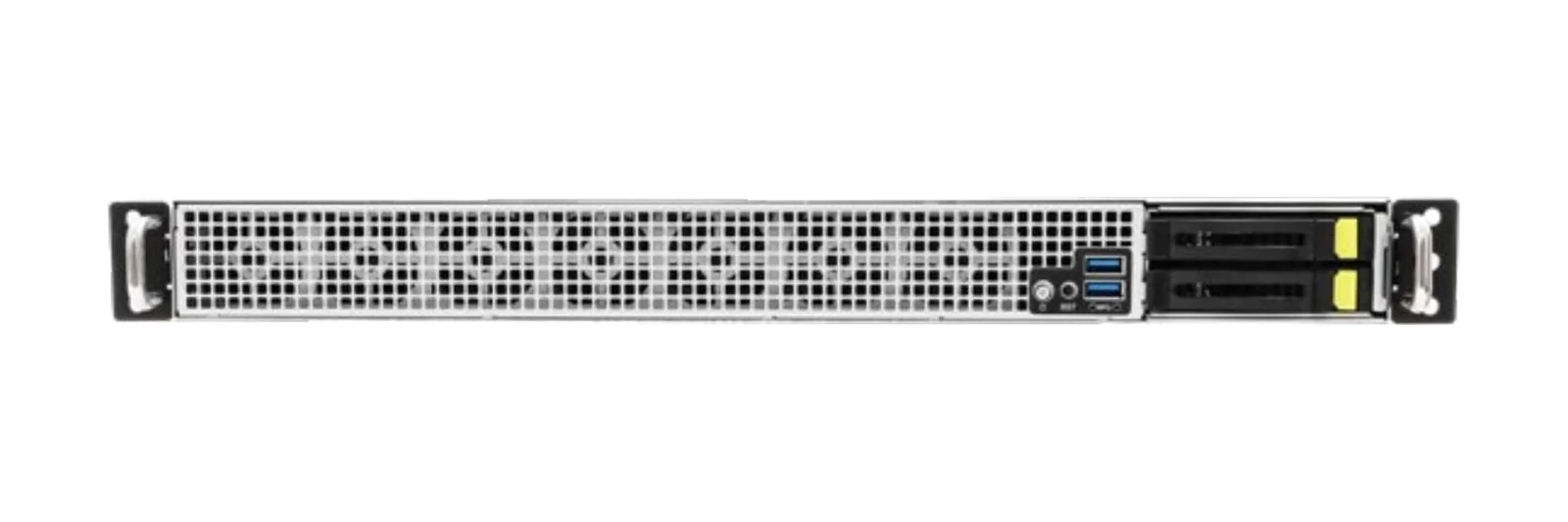

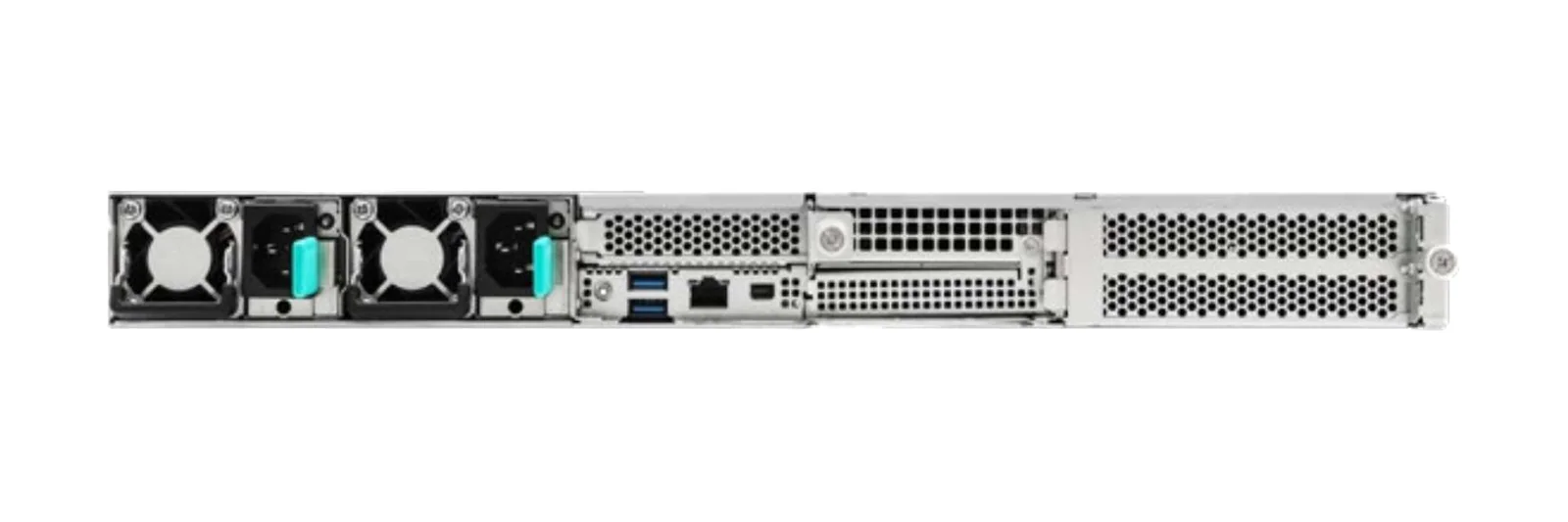

Views
