C-SERIES · GENERAL PURPOSEFRONT I/O
GL-C2U-2F-FIO
2 × NVMe

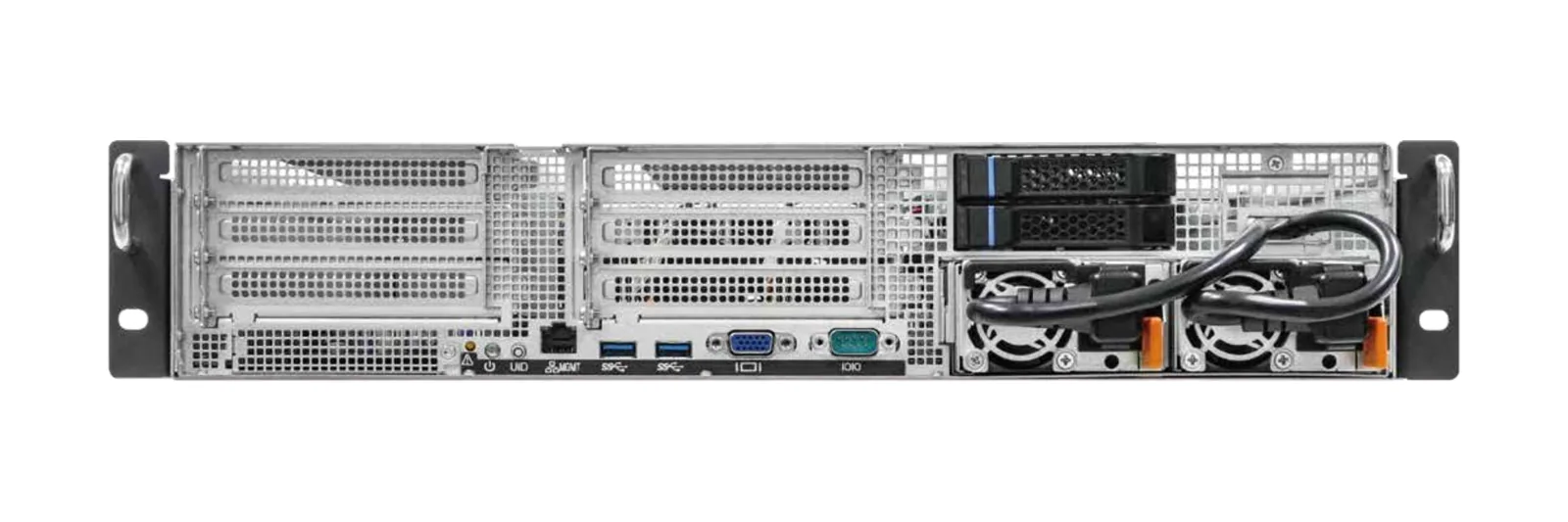

2U general-purpose server with 2 × NVMe bays, front I/O. Host platform: 3rd Gen Intel Xeon. Validated with GenesysBench™ and deployed under GLIDS.
- Drive bays
- 2× NVMe
- Height
- 2U
- Sockets
- 2
Specifications
Full public specification.
Previous generation. Still supported by GLabs; ask a solutions architect about availability.
| Form factor | 2U Rackmount |
|---|---|
| Processor | 1+1 Socket P+ (LGA4189) for 3rd Gen Intel® Xeon® Scalable Processors |
| Expansion | 1 dual-slot PCIe4.0 x16 1 dual-slot PCIe4.0 x16 1 OCP3.0 PCIe4.0 x16 1 FH PCIe4.0 x8 1 FH PCIe4.0 x8 |
| Storage | 2 Hot-swap 2.5'' SATA/NVMe drive bays [Front]1 M-key (PCIe3.0 x4 or SATA 6Gb/s), 2280/2260/2242/2230 form factor |
| Power | 1+1 1600W CRPS |
| Cooling | 4 PWM Hot-swap 80 x 38 mm fans |
| Dimensions (D × W × H) | 438 x 600 x 87 mm (17.24'' x 23.62'' x 3.43'') |
Exact CPU, memory, drive and network parts are fixed on your quote. GPU and platform names are trademarks of their respective owners.
