C-SERIES · GENERAL PURPOSE
GL-C1U-2F
2 × NVMe

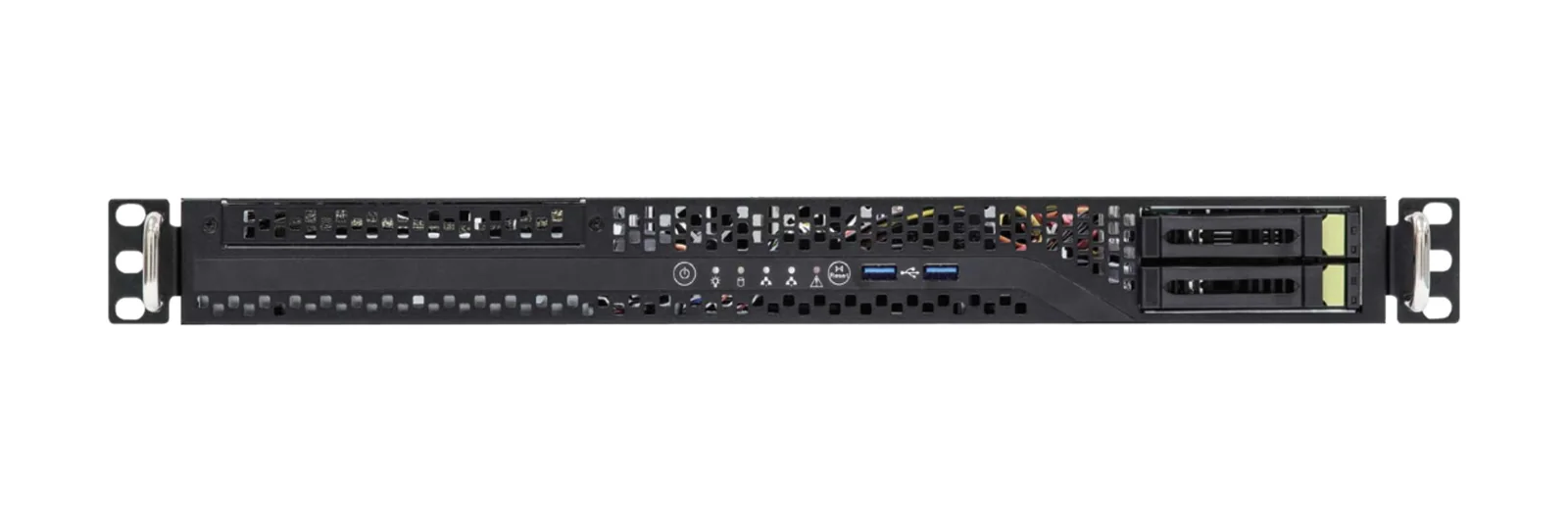

1U general-purpose server with 2 × NVMe bays. Host platform: Intel Xeon E-2300/E-2400. Validated with GenesysBench™ and deployed under GLIDS.
- Drive bays
- 2× NVMe
- Height
- 1U
- Sockets
- 1
Specifications
Full public specification.
| Form factor | 1U Rackmount |
|---|---|
| Processor | 1 Socket H5 (LGA1200) for Intel® Xeon® E-2300 and 10th Gen Intel® Pentium® Series Processors |
| Storage | 2 Hot-swap 2.5" NVMe or 2.5'' SATA drive bays1 Pxed 3.5'' SATA drive bay or 1 Slim ODD (optional) 1 M.2 (PCIe3.0 x2 or SATA 6Gb/s); support 22110/2280/2260 form factor |
| Networking | 2 RJ45 (1GbE)1 dedicated IPMI |
| Power | Single Gold 315W PSU |
| Cooling | 4 PWM Simple-Swap 40 x 28 mm fans |
| Dimensions (D × W × H) | 393.2 x 430 x 43.5 mm (15.5'' x 16.93'' x 1.71'') |
Exact CPU, memory, drive and network parts are fixed on your quote. GPU and platform names are trademarks of their respective owners.
