C-SERIES · GENERAL PURPOSE
GL-C1U-4H
4 × 3.5″ HDD

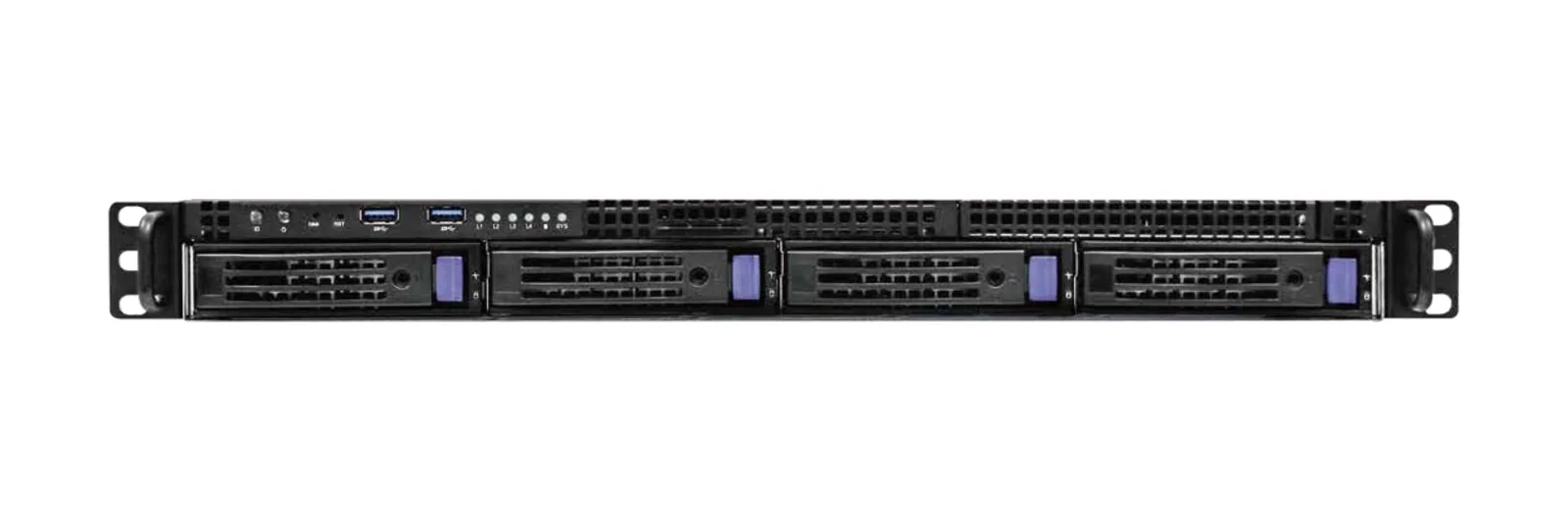

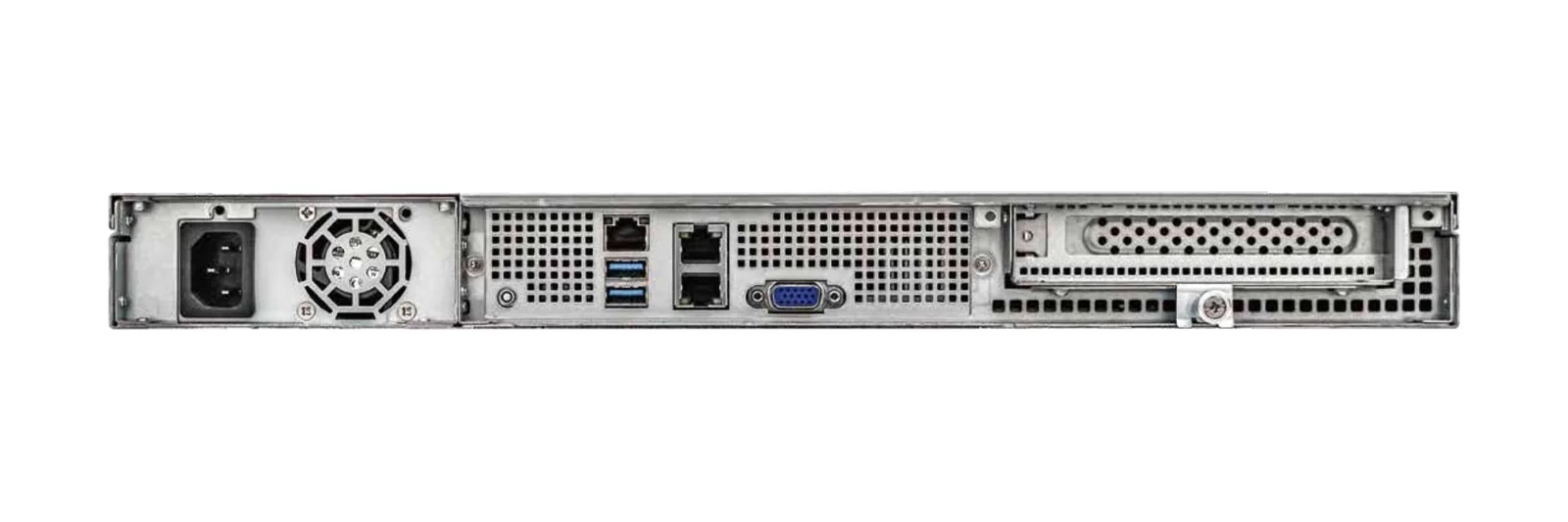

1U general-purpose server with 4 × 3.5″ HDD bays. One chassis, 6 host platforms: AMD EPYC 4005/4004, Intel Xeon 6300, Intel Xeon E-2300/E-2400, 3rd Gen Intel Xeon, 5th / 4th Gen Intel Xeon and AMD EPYC 7002. Validated with GenesysBench™ and deployed under GLIDS.
- Drive bays
- 4× 3.5″ HDD
- Height
- 1U
- Sockets
- 1
Specifications
Pick the host platform. The chassis, power and cooling follow it.
| Form factor | 1U Rackmount |
|---|---|
| Processor | 1 Socket AM5 (LGA1718); Supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors |
| Expansion | 1 FHHL PCIe4.0 x16 (Up to 75W) |
| Storage | 4 Hot-swap 3.5" SATA drive bays(PCIe5.0 x4), 2280/ 2242 form factor2 hot-swap 2.5" SATA drive bays1 fixed 3.5" SATA drive bay or 1 Slim ODD (PCIe5.0 x4), 2280/2242 form factor (PCIe4.0 x4), 2280/2242 form factor |
| Networking | 2 RJ45 (10GbE)2 RJ45 (1GbE)1 dedicated IPMI |
| Power | 1, 80-PLUS Gold, 400W PSU1, 80-PLUS Gold, 315W PSU |
| Cooling | 5 PWM Hot-swap 40x28 mm fan3 PWM Hot-swap 40x56 mm fans1 PWM Hot-swap 40x28 mm fans |
| Dimensions (D × W × H) | 533.4 x 438 x 44.4 mm (21" x 17.2" x 1.75")393.2 x 430 x 43.5 mm (15.5" x 16.93" x 1.71") |
| Management | Dedicated BMC (IPMI) TPM (13-pin, SPI) accessory 1U General Purpose Server For Small and Medium-sized BusinessDedicated BMC (IPMI) TPM (13-pin, SPI) accessory |
| Form factor | 1U Rackmount |
|---|---|
| Processor | 1 Socket AM5 (LGA1718); Supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors |
| Expansion | 1 FHHL PCIe4.0 x16 (Up to 75W) |
| Storage | 4 Hot-swap 3.5" SATA drive bays(PCIe5.0 x4), 2280/2242 form factor (PCIe4.0 x4), 2280/2242 form factor2 hot-swap 2.5" SATA drive bays1 fixed 3.5" SATA drive bay or 1 Slim ODD |
| Networking | 2 RJ45 (1GbE)1 dedicated IPMI 1 dedicated IPMI1 dedicated IPMI |
| Power | 1, 80-PLUS Gold, 400W PSU1, 80-PLUS Gold, 315W PSU |
| Cooling | 5 PWM Hot-swap 40x28 mm fan3 PWM Hot-swap 40x56 mm fans1 PWM Hot-swap 40x28 mm fans |
| Dimensions (D × W × H) | 533.4 x 438 x 44.4 mm (21" x 17.2" x 1.75")393.2 x 430 x 43.5 mm (15.5" x 16.93" x 1.71") |
| Management | Dedicated BMC (IPMI) TPM (13-pin, SPI) accessory 1U General Purpose Server For Small and Medium-sized BusinessDedicated BMC (IPMI) TPM (13-pin, SPI) accessory |
| Form factor | 1U Rackmount |
|---|---|
| Processor | E-2400 series, and Pentium® Gold G7400/G7400T processors |
| Expansion | 1 FHHL PCIe5.0 x16 |
| Storage | 4 Hot-swap 3.5" SATA drive bays2 Pxed 2.5" NVMe (PCIe4.0 x4) drive bay |
| Networking | 2 RJ45 (10GbE)2 RJ45 (1GbE)1 dedicated IPMI |
| Power | 1, 80-PLUS Gold, 400W PSU |
| Cooling | 5 PWM Easy-swap 40x28 mm fans |
| Dimensions (D × W × H) | 533.4 x 482.6 x 44.4 mm (21” x 19” x 1.75”) |
| Form factor | 1U Rackmount |
|---|---|
| Processor | 1 Socket H5 (LGA1200) for Intel® Xeon® E-2300 and 10th Gen Intel® Pentium® Series Processors |
| Expansion | 1 PCIe4.0 x16 for full height card |
| Storage | 4 Hot-swap 3.5'' SATA drive bays2 Pxed 2.5'' SATA drive bays or 1 Pxed 2.5'' SATA drive bay, 1 Slim ODD 1 M.2 (PCIe3.0 x2 or SATA 6Gb/s); support 22110/2280/2260 form factor |
| Networking | 2 RJ45 (1GbE)1 dedicated IPMI |
| Power | Single Gold 400W PSU |
| Cooling | 5 PWM Simple-Swap 40 x 28 mm fans |
| Dimensions (D × W × H) | 533.4 x 482.6 x 44.4 mm (21'' x 19'' x 1.75'') |
Previous generation. Still supported by GLabs; ask a solutions architect about availability.
| Form factor | 1U Rackmount |
|---|---|
| Processor | 1 Socket P+ (LGA4189) for 3rd Gen Intel® Xeon® Scalable Processors |
| Expansion | 1 FHHL PCIe4.0 x16 |
| Storage | 4 Hot-swap 3.5" SATA drive bays3 Qxed 2.5" SATA drive bays1 M-key (PCIe3.0 x4 or SATA 6Gb/s); support 2280 form factor |
| Networking | 2 RJ45 (10GbE)1 dedicated IPMI |
| Power | Single 600W PSU |
| Cooling | 4 PWM Hot-swap 40x28 mm fans |
| Dimensions (D × W × H) | 533.4 x 482.6 x 44.4 mm (21" x 19" x 1.75") |
Previous generation. Still supported by GLabs; ask a solutions architect about availability.
| Form factor | 1U Rackmount |
|---|---|
| Processor | 1 Socket E (LGA 4677); Supports 5th & 4th Gen Intel® Xeon® Scalable processors |
| Expansion | 1 FHHL PCIe5.0 x16 |
| Storage | 4 Hot-swap 3.5" SATA drive bays1 M-key (PCIe3.0 x4); support 2280 form factor 4 Internal 2.5" SATA drive bays |
| Networking | 2 RJ45 (10GbE)1 dedicated IPMI |
| Power | 1+1, 80-PLUS Platinum, 750W Slim RPSU |
| Cooling | 6 PWM Hot-swap 40x56 mm fans |
| Dimensions (D × W × H) | 676.5 x 438 x 43.4 mm (26.6" x 17.2" x 1.7") |
Previous generation. Still supported by GLabs; ask a solutions architect about availability.
| Form factor | 1U Rackmount |
|---|---|
| Processor | 1 Socket SP3(LGA4094), AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology )/7002 series processors |
| Expansion | 1 FHHL PCIe4.0 x16 |
| Storage | 4 Hot-swap 3.5" SATA drive bays3 Vxed 2.5" SATA drive bays1 M-key (PCIe4.0 x4 or SATA 6Gb/s); support 2280 form factor |
| Networking | 2 RJ45 (10GbE)1 dedicated IPMI |
| Power | 1, 600W Flex ATX PSU |
| Cooling | 5 PWM 40x28 mm fans |
| Dimensions (D × W × H) | 533.4 x 482.6 x 44.4 mm (21" x 19" x 1.75") |
Exact CPU, memory, drive and network parts are fixed on your quote. GPU and platform names are trademarks of their respective owners.
