X-SERIES · SCALE-UP GPU
GL-X3U-HGX
NVIDIA HGX
3U scale-up GPU server on NVIDIA HGX. Host platform: AMD EPYC 7002. Validated with GenesysBench™ and deployed under GLIDS; AI workloads run on the GLabs AI Stack.
- Platform
- HGX
- Height
- 3U
- Sockets
- 1
Specifications
Full public specification.
Previous generation. Still supported by GLabs; ask a solutions architect about availability.
| Form factor | 3U Rackmount |
|---|---|
| Processor | 1 Socket SP3(LGA4094), AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology )/7002 series processors |
| Storage | 2 Hot-swap 3.5" NVMe (PCIe4.0 x4)/SATA drive bays [Front] 2 Hot-swap 3.5" SATA drive bays [Front]1 M-key (PCIe4.0 x4 or SATA 6Gb/s), 2280/2260/2242/2230 form factor1 M-key (PCIe4.0 x4 or SATA 6Gb/s), 22110/2280/2260/2242/2230 form factor |
| Networking | 10000/1000/100/10 Mbps2 x RJ45 10GLAN 1 x RJ45 Dedicated IPMI LAN port |
| Power | 2 (1+1), CRPS3000W |
| Dimensions (D × W × H) | 870 x 438 x 132.5mm (34.3" x 17.2" x 5.2") |
Exact CPU, memory, drive and network parts are fixed on your quote. GPU and platform names are trademarks of their respective owners.

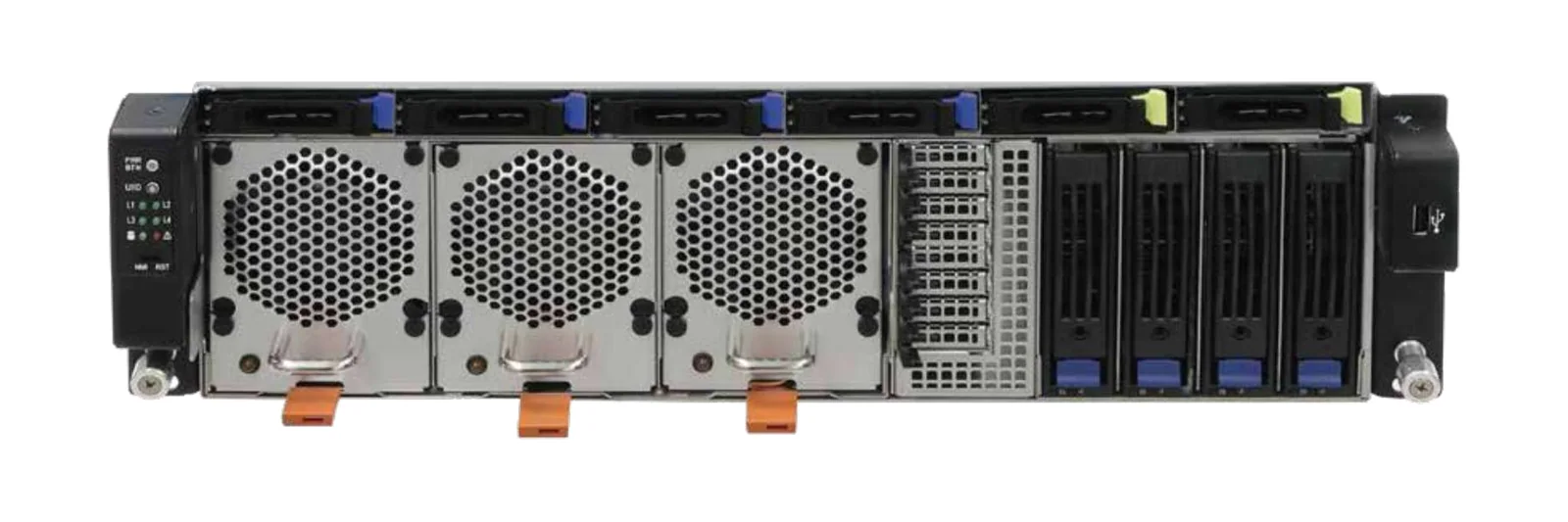

Views
Configure GL-X3U-HGX
Choose the host, memory, storage and networking. Your request goes straight to a Solutions Architect, who replies with a validated build and quote.
- 01System and host
- 02Processor
- 03Memory
- 04GPU
- 05Storage
- 06Networking
- 07Software stack
- 08Send request
Tell us what you're building.
A solutions architect responds directly — no ticket queue.
