X-SERIES · SCALE-UP GPULIQUID-COOLED

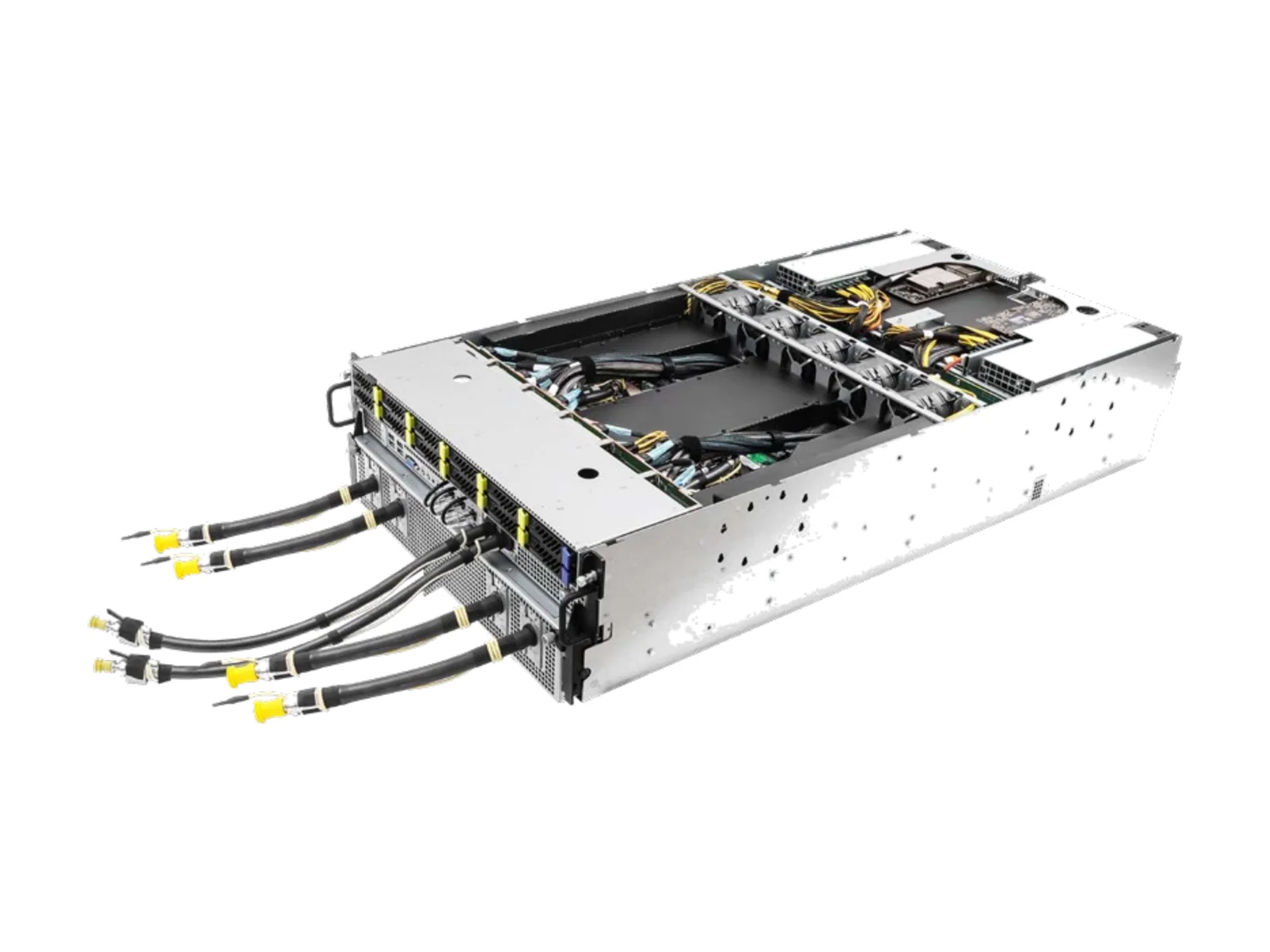

GL-X4U-B200-L
NVIDIA HGX B200, liquid-cooled
4U scale-up GPU server on NVIDIA HGX B200, liquid-cooled. One chassis, 2 host platforms: 5th / 4th Gen Intel Xeon and AMD EPYC 9005. Validated with GenesysBench™ and deployed under GLIDS; AI workloads run on the GLabs AI Stack.
- Platform
- HGX B200
- GPUs
- 8
- Memory
- 32 DIMM slots
- NVMe bays
- 8×
Specifications
Pick the host platform. The chassis, power and cooling follow it.
| Form factor | 4U Rackmount |
|---|---|
| Processor | 1+1 Socket E (LGA 4677); 5 and 4 Gen Intel® Xeon® Scalable processors |
| Memory | 16+16 DDR5 288-pin DIMM Slots (2DPC); RDIMM up to 64GB each, RDIMM-3DS up to 256GB each 5600MT/s (1DPC) / 4400MT/s (2DPC) on 5th Gen Intel® Xeon® Scalable processors 4800MT/s (1DPC) / 4400MT/s (2DPC) on 4th Gen Intel® Xeon® Scalable processors |
| GPU | Supports eight NVIDIA B200 GPUs |
| PCIe fabric | PCIe Gen5 switch |
| Expansion | 8 FHHL PCIe5.0 x16 from PCIe Switch2 FHHL PCIe5.0 x16 from CPU |
| Storage | 8 hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays from PCIe Switch1 M-key (PCIe3.0 x4 or SATA 6Gb/s); 2280/22110 form factor1 M-key (PCIe3.0 x4); 2280/22110 form factor |
| Networking | 2 RJ45 (1GbE), share with front panel1 dedicated IPMI |
| Power | 4+4, 80-Plus Titanium, 3000W CRPS |
| Cooling | 10 PWM 60x56 mm fans |
| Dimensions (D × W × H) | 870 x 446 x 175 mm (34.3" x 17.6" x 6.9") |
| Management | Dedicated BMC (IPMI) |
| Form factor | 4U Rackmount |
|---|---|
| Processor | 1+1 Socket SP5 (LGA6096); AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors |
| CPU TDP | Up to 500W |
| Memory | 12+12 DDR5 DIMM Slots (1DPC); RDIMM up to 128GB each, max. 6400MT/sRDIMM-3DS up to 256GB each, max. 6400MT/s |
| GPU | Supports eight NVIDIA B200 GPUs |
| PCIe fabric | PCIe Gen5 switch |
| Expansion | 8 FHHL PCIe5.0 x16 from PCIe Switch1 FHHL PCIe5.0 x16 from CPU |
| Storage | 8 hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays from PCIe Switch1 M-key (PCIe3.0 x2 or SATA 6Gb/s); 22110/2280 form factor1 M-key (PCIe3.0 x4 or SATA 6Gb/s); 22110/2280 form factor |
| Networking | 2 RJ45 (1GbE)1 dedicated IPMI UID button, 1 DB15 (VGA), 2 Type-A (USB3.2 Gen1) |
| Power | 4+4, 80-Plus Titanium, 3000W CRPS |
| Cooling | 10 PWM 60x56 mm fans |
| Dimensions (D × W × H) | 900 x 448 x 175 mm (35.4" x 17.6" x 6.9") |
| Management | Dedicated BMC (IPMI) |
NVIDIA-Qualified GPUs
- NVIDIA HGX B200 8-GPU · on 5th Gen Intel Xeon Scalable
Exact CPU, memory, drive and network parts are fixed on your quote. GPU and platform names are trademarks of their respective owners.
Configure GL-X4U-B200-L
Choose the host, memory, storage and networking. Your request goes straight to a Solutions Architect, who replies with a validated build and quote.
