N-SERIES · MULTI-NODEFRONT I/O

GL-N2U-4N-FIO

4 nodes

2U multi-node server with 4 nodes, front I/O (2 nodes/U). One chassis, 2 host platforms: 5th / 4th Gen Intel Xeon and AMD EPYC 7002. Validated with GenesysBench™ and deployed under GLIDS.

NVMe bays: 4×
Nodes: 4
Height: 2U
Sockets: 1

Configure this system Talk to a Solutions Architect

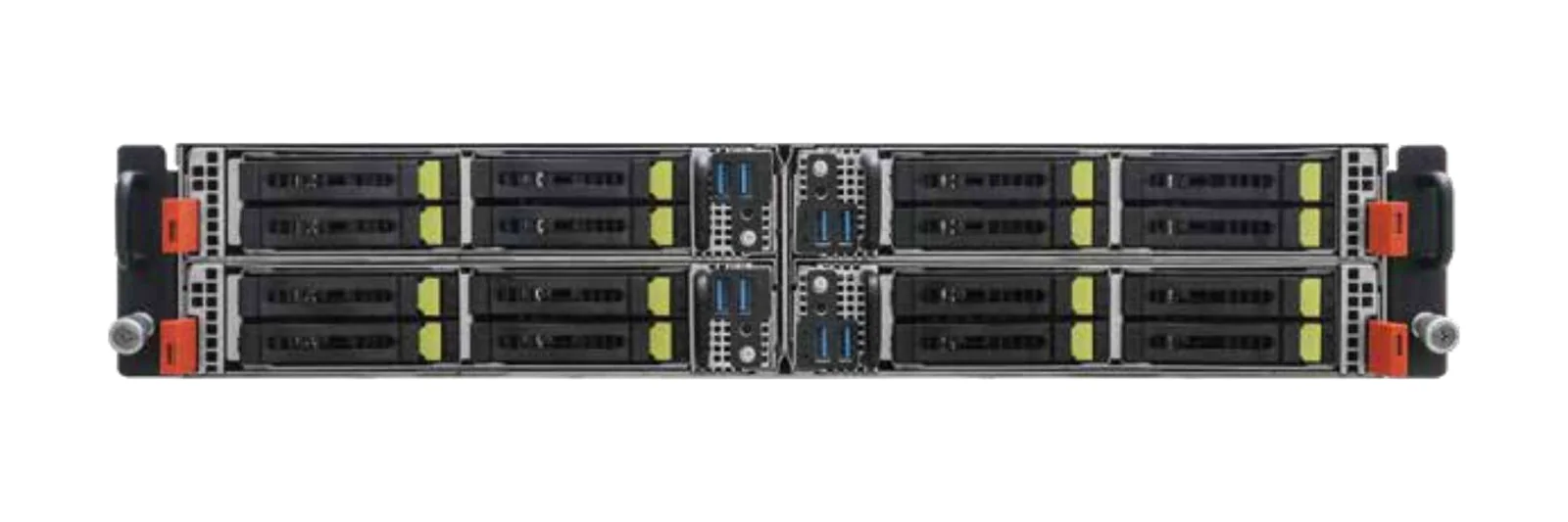

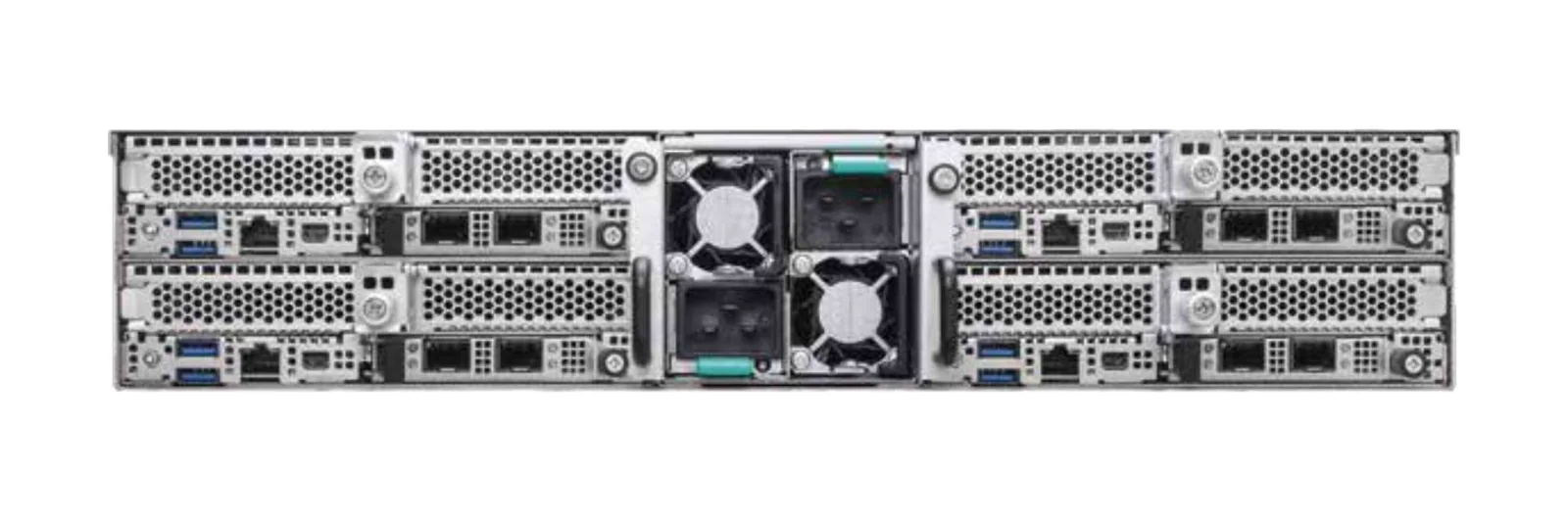

GL-N2U-4N-FIO, multi-node server, overview

Specifications

Pick the host platform. The chassis, power and cooling follow it.

Previous generation. Still supported by GLabs; ask a solutions architect about availability.

GL-N2U-4N-FIO: 5th / 4th Gen Intel Xeon specifications
Form factor	2U Rackmount
Processor	Single Socket E (LGA 4677), 5th & 4th Gen Intel® Xeon® Scalable processors
Expansion	2 HHHL PCIe5.0 x16 1 OCP NIC 3.0 (PCIe5.0 x16)
Storage	4 hot-swap 2.5" NVMe (PCIe5.0 x4)/SATA/SAS drive bays or8 hot-swap EDSFF E1.S NVMe (PCIe5.0 x4) drive bays, 9.5 mm width1 M-key (PCIe3.0 x4 or SATA 6Gb/s), 22110 form factor1 M-key (PCIe3.0 x4 or SATA 6Gb/s), 2280 form factor
Networking	1 dedicated IPMI
Power	1+1, 80-PLUS Platinum/Titanium, 2700W CRPS
Cooling	4 PWM hot-swap dual-rotor 40x56 mm fans
Dimensions (D × W × H)	750 x 438 x 86.6 mm (29.5" x 17.2" x3.4")

Previous generation. Still supported by GLabs; ask a solutions architect about availability.

GL-N2U-4N-FIO: AMD EPYC 7002 specifications
Form factor	2U Rackmount
Processor	1 Socket SP3(LGA4094), AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology )/7002 series processors8 DIMM Slots, Supports Eight-Channel DDR4 3200/2933 R DIMM (Modules up to 64GB Supported), and LR DIMM (Modules up to 256GB Supported)
Storage	4 x 2.5" HDD/SSD per node (all SATA or 2 x NVME* + 2 x SATA)
Networking	RJ45: 1(IPMI) LAN Ports with LED (ACT/LINK LED and SPEED LED)
Power	2 (1+1) 1600W CRPS
Cooling	4 x 40*56mm Fans B-22
Dimensions (D × W × H)	820 x 442.2 x 86.6mm (32.3" x 17.4" x 3.4")
