M-SERIES · NVIDIA MGX
GL-M2U-VERA
NVIDIA Vera
2U NVIDIA MGX server on NVIDIA Vera. Host platform: NVIDIA Vera. Validated with GenesysBench™ and deployed under GLIDS; AI workloads run on the GLabs AI Stack.
- Platform
- Vera
- Height
- 2U
- Sockets
- 2
Specifications
Full public specification.
| Form factor | 2U Rackmount, NVIDIA MGX 2U Compliant |
|---|---|
| Processor | 1+1 NVIDIA Vera CPUs with NVIDIA NVLink™-C2C |
| CPU TDP | Up to 450W |
| Expansion | 2 FHFL dual-slot PCIe6.0 x16 for GPUs1 FHHL PCIe6.0 x16 for NVIDIA® BlueField®-3 DPU 2 HHHL PCIe6.0 x16 for NVIDIA ConnectX®-8 |
| Storage | 8 hot-swap E1.S (PCIe6.0 x4) drive bays |
| Networking | 1 dedicated IPMI |
| Power | 3+1, 80-PLUS Titanium, 2000W CRPS |
| Cooling | 6 easy-swap 60x56 mm fans |
| Dimensions (D × W × H) | 900 x 438 x 87 mm (35.4" x 17.2" x 3.4") |
| Management | Dedicated BMC (IPMI) |
Exact CPU, memory, drive and network parts are fixed on your quote. GPU and platform names are trademarks of their respective owners.

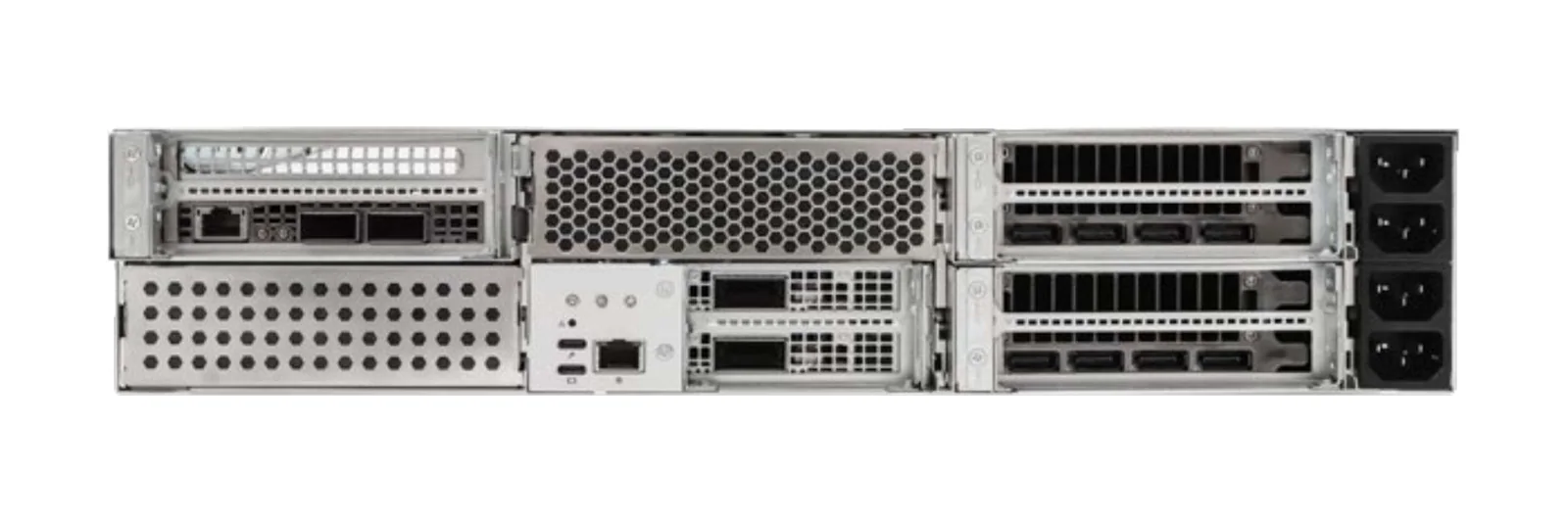

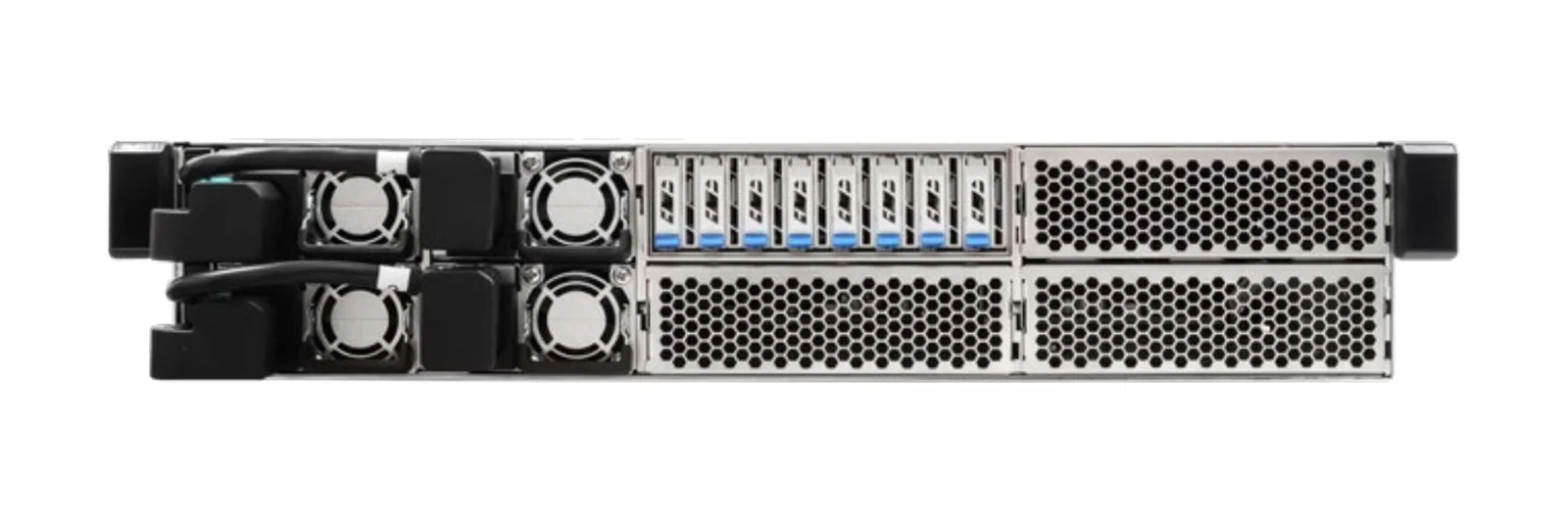

Views
Configure GL-M2U-VERA
Choose the host, memory, storage and networking. Your request goes straight to a Solutions Architect, who replies with a validated build and quote.
- 01System and host
- 02Processor
- 03Memory
- 04GPU
- 05Storage
- 06Networking
- 07Software stack
- 08Send request
Tell us what you're building.
A solutions architect responds directly — no ticket queue.
