M-SERIES · NVIDIA MGX

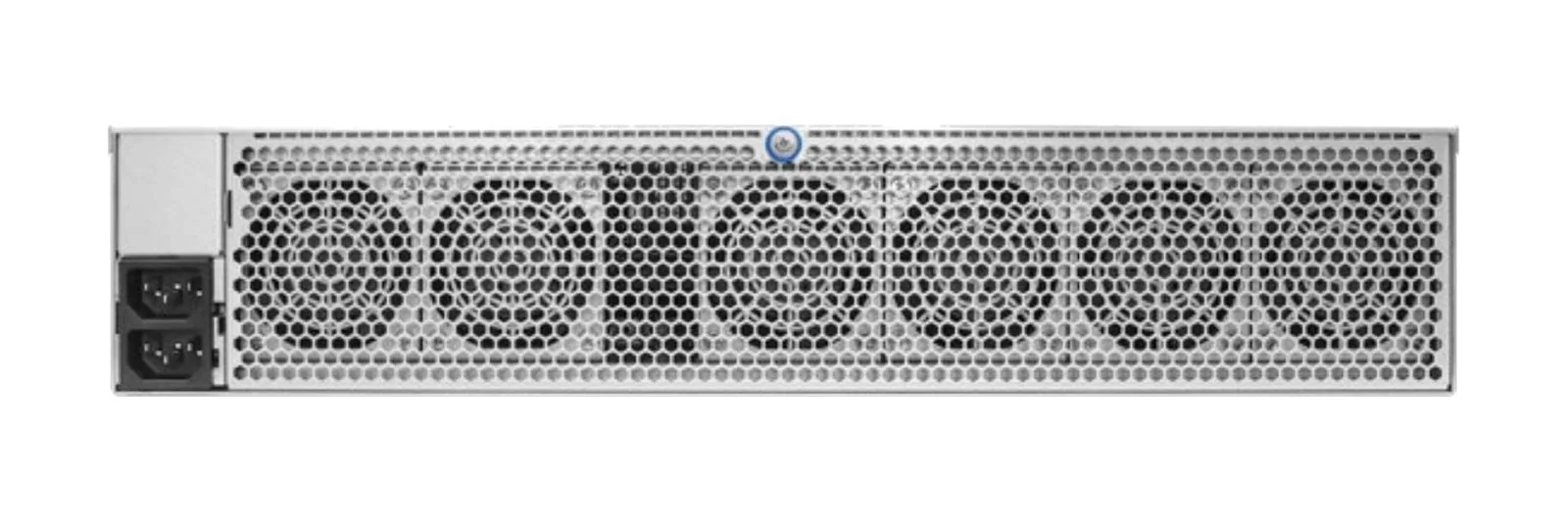

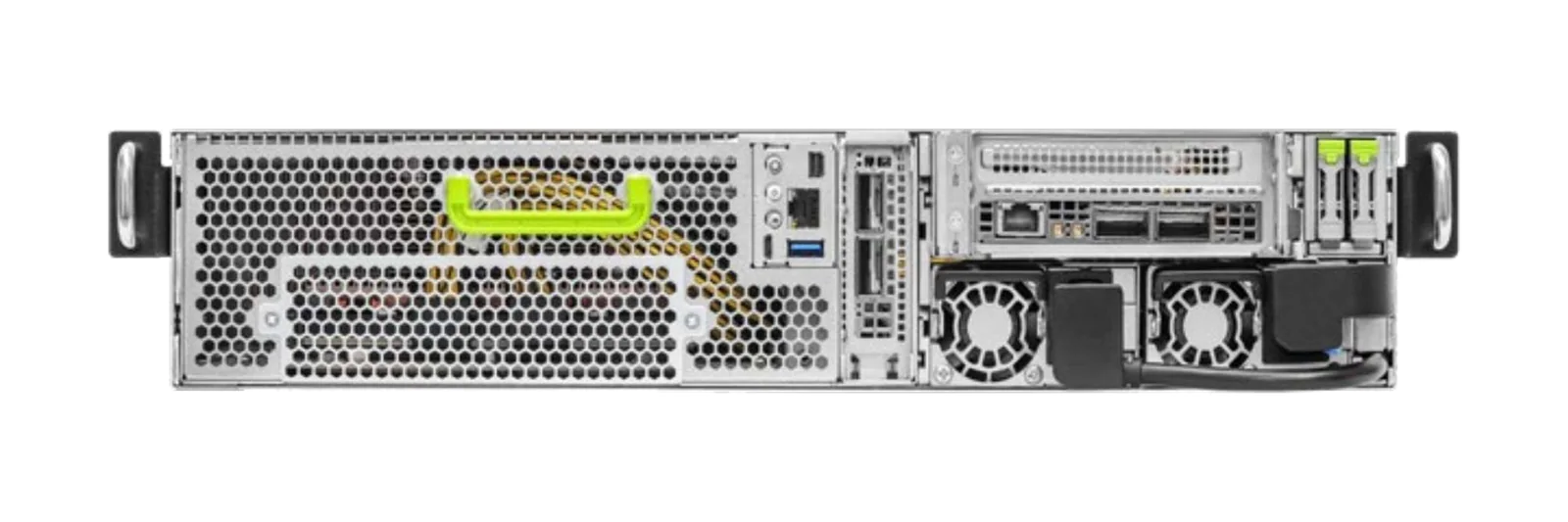

GL-M2U-GH200
NVIDIA GH200 Grace Hopper
2U NVIDIA MGX server on NVIDIA GH200 Grace Hopper. Host platform: NVIDIA Grace. Validated with GenesysBench™ and deployed under GLIDS; AI workloads run on the GLabs AI Stack.
- Platform
- GH200 Grace Hopper
- Height
- 2U
- Sockets
- 1
Specifications
Full public specification.
| Form factor | 2U NVIDIA MGX™ |
|---|---|
| Storage | 2 E1.S (PCIe5.0 x4)2 M-key (PCIe5.0 x4), 22110/2280 form factor |
| Networking | 1 dedicated IPMI |
| Power | 1+1, 80-PLUS Platinum, 2000W CRPS |
| Cooling | 6 PWM hot-swap 60x76 mm fans |
| Dimensions (D × W × H) | 420 x 438 x 87 mm (16.5" x 17.2" x 3.4") |
| Management | Dedicated BMC (IPMI) |
Exact CPU, memory, drive and network parts are fixed on your quote. GPU and platform names are trademarks of their respective owners.
