X-SERIES · SCALE-UP GPU
GL-X8U-B300
NVIDIA HGX B300

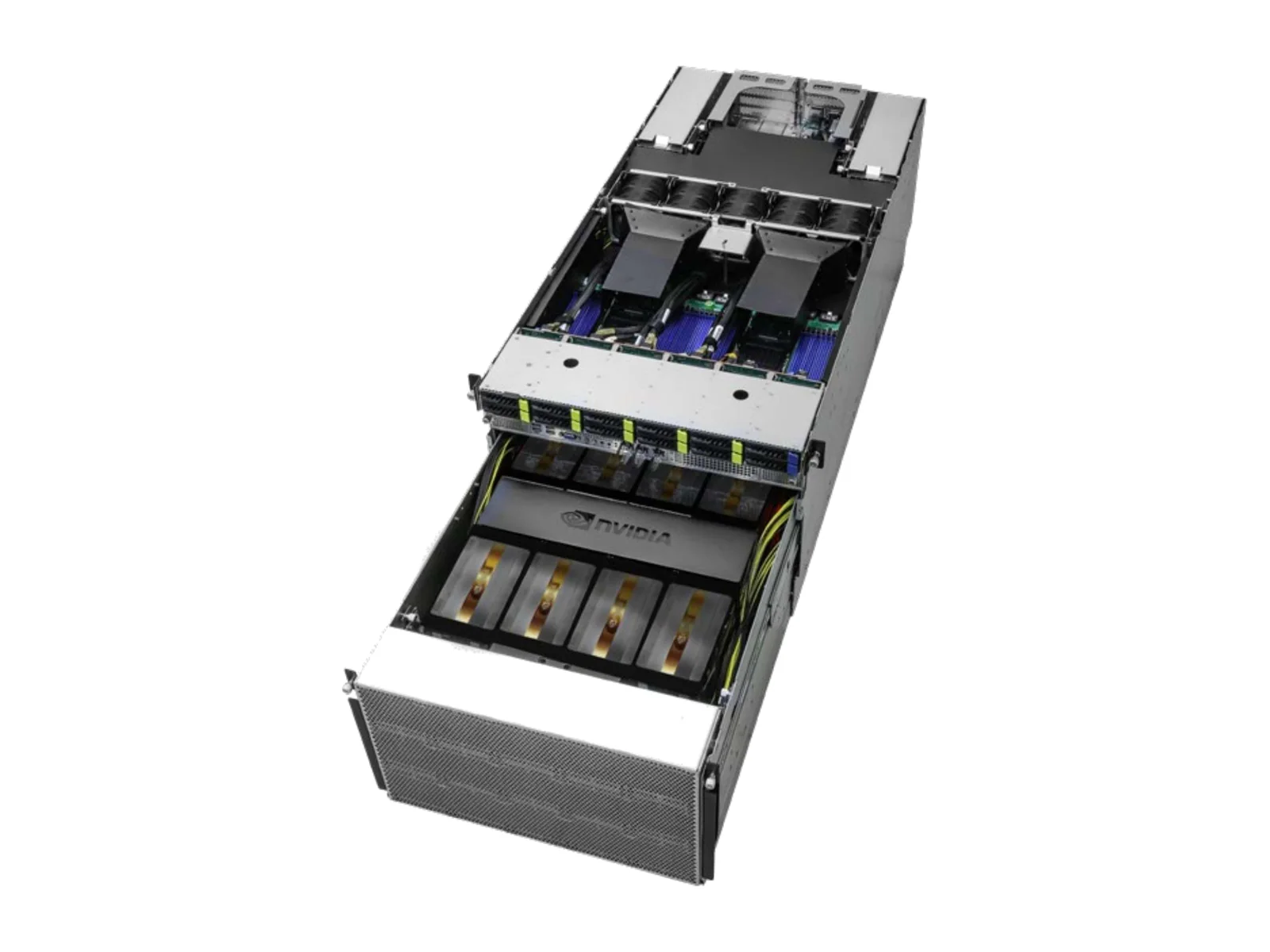

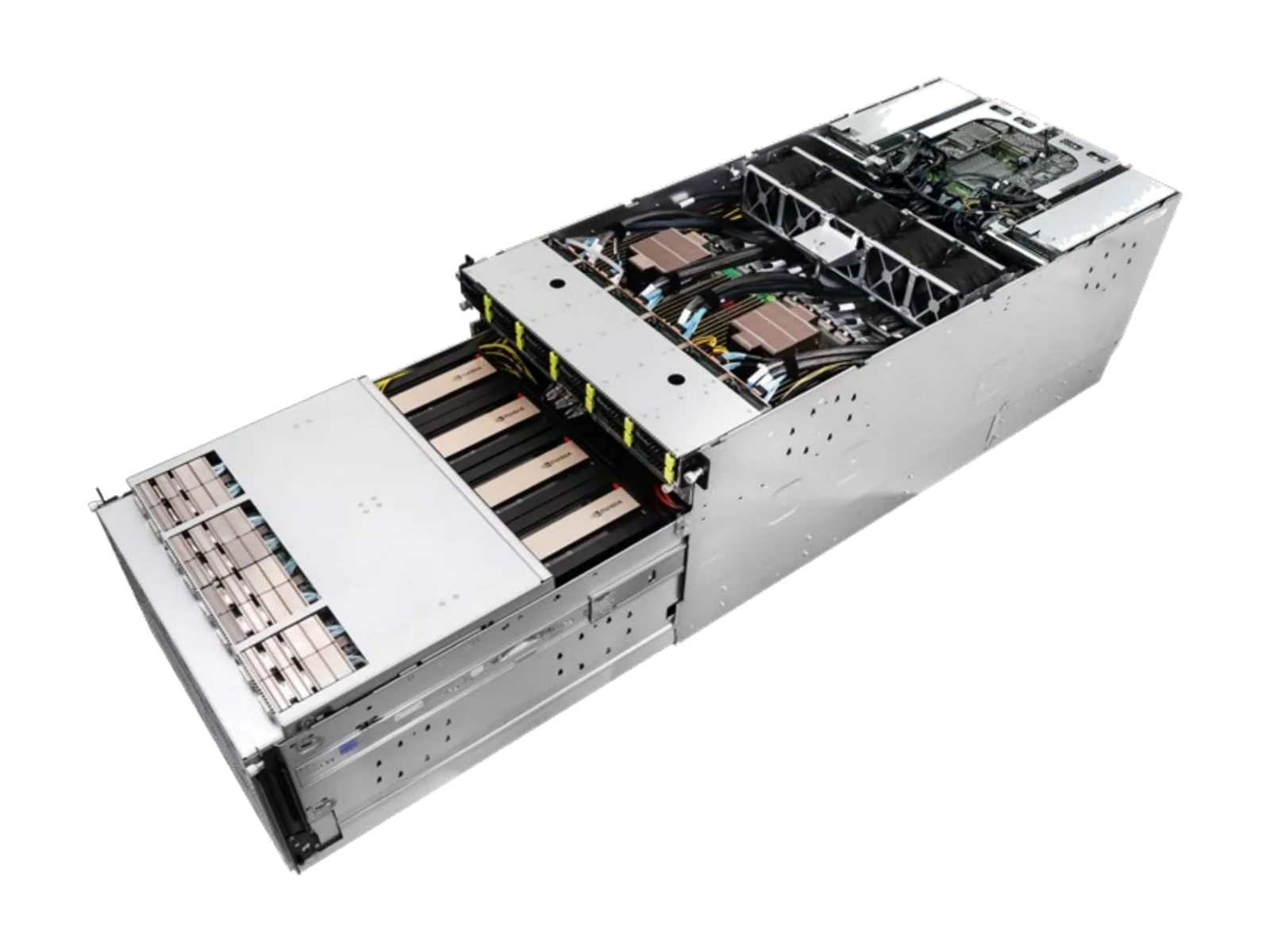

8U scale-up GPU server on NVIDIA HGX B300. One chassis, 3 host platforms: Intel Xeon 6, AMD EPYC 9005 and Intel Xeon 6900P. Validated with GenesysBench™ and deployed under GLIDS; AI workloads run on the GLabs AI Stack.
- Platform
- HGX B300
- GPUs
- 8
- Memory
- 32 DIMM slots
- NVMe bays
- 12×
Specifications
Pick the host platform. The chassis, power and cooling follow it.
| Form factor | 8U Rackmount |
|---|---|
| Processor | 1+1 Socket E2 (LGA 4710); Intel® Xeon® 6700P-series, 6500P-series, and 6700E-series processors |
| Memory | 16+16 DDR5 DIMM Slots (2DPC); RDIMM up to 128GB (2Rx4) each, max. 6400MT/s (1DPC), 5200MT/s (2DPC)RDIMM-3DS up to 256GB (4Rx4) each, max. 6400MT/s (1DPC), 5200MT/s (2DPC)MRDIMM up to 64GB (2Rx4) each, max. 8000MT/s (1DPC) |
| GPU | NVIDIA HGX™ B300 NVL8 |
| PCIe fabric | PCIe Gen5 switch |
| Expansion | 4 FHHL PCIe5.0 x16 |
| Storage | 12 hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays from PCIe Switch1 M-key (PCIe5.0 x2); 22110/2280 form factor2 M-key (PCIe5.0 x4); support 22110/2280 form factor |
| Networking | 2 RJ45 (1GbE)1 dedicated IPMI8 OSFP (800Gb/s) ports® ConnectX®-8 |
| Power | 6+6, 80-PLUS Titanium, 3000W CRPS |
| Cooling | 26 PWM 80x80 mm fans, 6 PWM 60x56 mm fans |
| Dimensions (D × W × H) | 930 x 448 x 353.6 mm (36.6" x 17.6" x 13.9") |
| Management | Dedicated BMC (IPMI) |
| Form factor | 8U Rackmount |
|---|---|

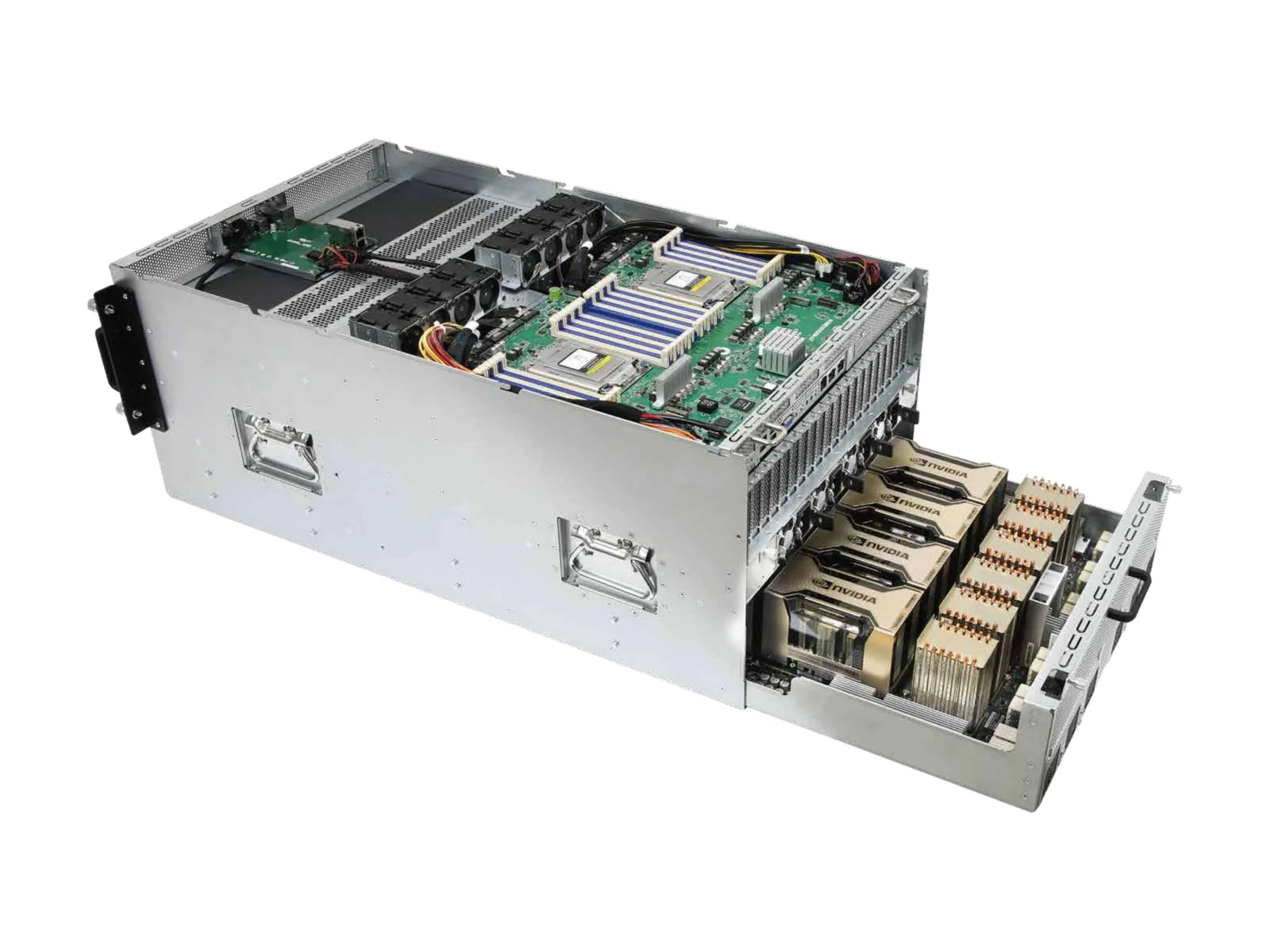

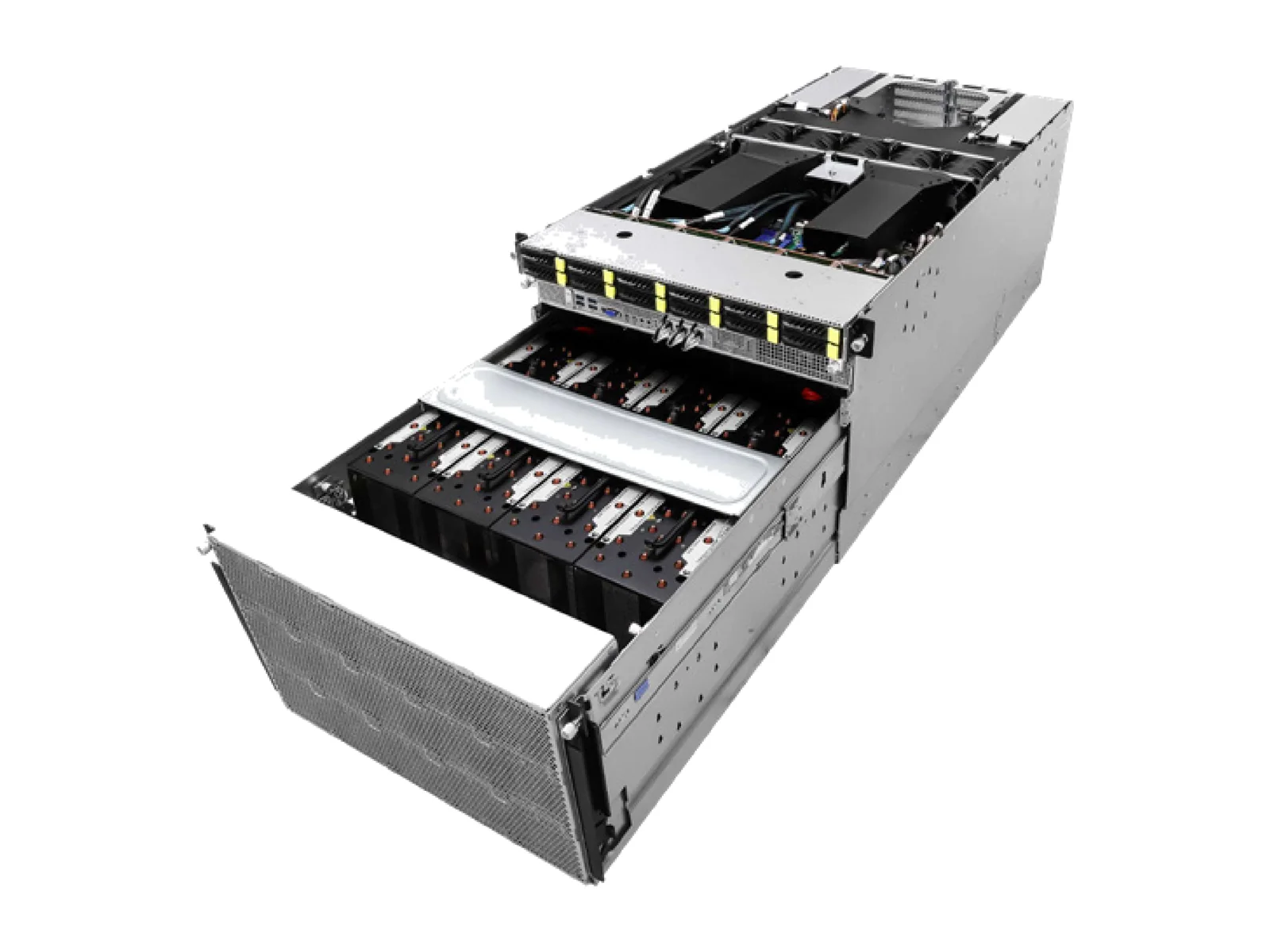

| Processor | 1+1 Socket SP5 (LGA 6096); AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors |
| CPU TDP | Up to 500W |
| Memory | 12+12 DIMM Slots (1DPC) |
| Expansion | 4 FHHL PCIe5.0 x16 |
| Storage | 12 hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays(PCIe3.0 x2 or SATA 6Gb/s); 22110/2280 form factor (PCIe3.0 x4 or SATA 6Gb/s); 22110/2280 form factor |
| Networking | 2 RJ45 (1GbE)1 dedicated IPMI8 OSFP (800Gb/s)® ConnectX®-8 SuperNIC |
| Power | 6+6, 80-PLUS Titanium, 3000W CRPS |
| Cooling | 26 PWM 80x80 mm fans, 6 PWM 60x56 mm fans |
| Dimensions (D × W × H) | 930 x 448 x 353.6 mm (36.6" x 17.6" x 13.9") |
| Management | Dedicated BMC (IPMI) |
| Form factor | 8U Rackmount |
|---|---|
| Processor | 1+1 Socket BR (LGA 7529) Intel® Xeon® 6900P-series, 6900E-series processors |
| Memory | 12+12 DIMM slots (1DPC) |
| GPU | NVIDIA® HGX™ B300 NVL8 |
| PCIe fabric | PCIe Gen5 switch |
| Expansion | 4 FHHL PCIe5.0 x16 |
| Storage | 8 Hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays from PCIe Switch1 M-key (PCIe5.0 x4), 22110/2280 form factor1 M-key (PCIe5.0 x2), 22110/2280 form factor |
| Networking | 2 RJ45 (1GbE)1 dedicated IPMI8 OSFP (800Gb/s) ports® ConnectX®-8 |
| Power | 6+6, 80-PLUS Titanium, 3000W CRPS |
| Cooling | 26 PWM 80x80 mm fans + 6 PWM 60x56 mm fans |
| Dimensions (D × W × H) | 930 x 448 x 353.6mm (36.6" x 17.6" x 13.9") |
NVIDIA-Qualified GPUs
- NVIDIA HGX B300 8-GPU · on AMD EPYC 9005, Intel Xeon 6
Exact CPU, memory, drive and network parts are fixed on your quote. GPU and platform names are trademarks of their respective owners.
